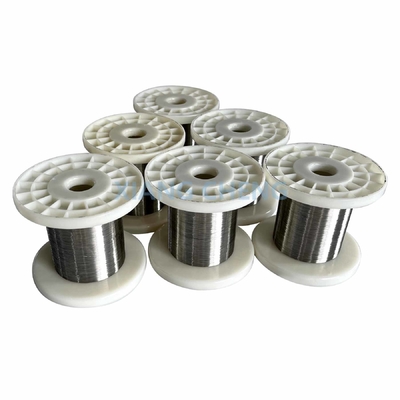

Industrial Winding Copper Nickel Alloy Wire CuNi30 NC035 For Electronics

MOQ:	5kg
Price:	TBD
Standard Packaging:	Packed with waterproof paper or weave bag, into pallets or wooden case. Special packaging requirements can also be accommodated.
Delivery Period:	3 days
Payment Method:	T/T, D/P
Supply Capacity:	30 Tons per day

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Senphus

Model Number

CuNi30/NC035

Place Of Origin:

Jiangsu, China

Type:

Nickel Wire

Application:

Heating,household Electrical Application

Color:

Silvery White/bright Or Oxidized

Certification:

ISO9001

Product Name:

CuNi30 NC035 Copper Nickel Wire

Resistivity:

0.35 ±5%

Melting Temperature In ℃:

Min.tensile Strength In N/mm²:

Elongation:

Density:

Highlight:

Industrial Copper Nickel Alloy Wire

Electronics Copper Nickel Alloy Wire

Industrial copper winding wire

Product Description

Industrial Winding Copper Nickel Alloy Wire CuNi30 NC035 For Electronics

CuNi30 is a copper-nickel alloy composed of approximately 70% copper and 30% nickel, with trace amounts of other elements like iron and manganese. This alloy is known for its excellent resistance to corrosion, particularly in marine environments and seawater. Due to its high nickel content, CuNi30 provides outstanding resistance to rust, oxidation, and biofouling, making it ideal for applications in shipbuilding, offshore structures, and seawater cooling systems.

In addition to its superior corrosion resistance, CuNi30 also offers good mechanical strength, making it suitable for components that need to withstand high stresses, such as piping, valves, and heat exchangers. It has good thermal conductivity and is resistant to erosion and cavitation, which is critical for marine hardware like propellers and pumps exposed to turbulent water flow.

CuNi30 is non-magnetic, a desirable property for electrical components where magnetic interference must be minimized. It is highly workable, meaning it can be easily machined, welded, and formed into complex shapes for a variety of industrial and marine applications.

Chemical Composition Wt.%	%	Ni	Cu	Mn
	Min
	Max	30	Rest	1

Main physical properties:

Max continuous operating temperature ℃	350
Resistance temperature coefficient x 10^-5/℃(20℃-600℃)	<10
Thermovoltage to copper at 20℃ in μV/K	-37
Thermal expansion coefficient ×10^-6/K(20℃-400℃)	17.0
Thermal conductance at 20℃ W/mK	27
Specific heat capacity at 20℃ J/gK	0.39

Some key features of CuNi30 include:

1. Outstanding Corrosion Resistance

CuNi30 offers exceptional resistance to corrosion, particularly in seawater, making it ideal for marine environments. It resists both saltwater corrosion and biofouling, which are common challenges in applications like offshore structures, shipbuilding, and seawater cooling systems.

2. High Nickel Content for Enhanced Durability

The high nickel content (30%) contributes to the alloy's excellent corrosion resistance, oxidation resistance, and improved mechanical properties compared to pure copper. This makes it suitable for use in environments where durability and long-term performance are critical.

3. Good Mechanical Strength

CuNi30 possesses strong tensile strength and mechanical integrity, allowing it to withstand significant stress and mechanical forces. This makes it suitable for structural components, piping systems, and marine hardware that require strength and durability under harsh conditions.

4. Excellent Resistance to Erosion and Cavitation

The alloy is highly resistant to erosion and cavitation, which are especially important in marine applications where components like propellers, pumps, and valves are exposed to turbulent water flow.

5. Thermal Conductivity

While not as conductive as pure copper, CuNi30 has good thermal conductivity, making it useful in heat exchangers, cooling systems, and other applications where heat dissipation is important.

6. Non-Magnetic

CuNi30 is non-magnetic, which is a valuable property for electrical components and sensitive instrumentation where magnetic fields could interfere with operation. This makes it useful in electronic devices and marine instrumentation.

7. Good Workability and Fabrication

CuNi30 is easily formable, weldable, and machinable, making it ideal for creating a wide range of components such as pipes, valves, fittings, and marine hardware. It can be drawn into wires, rolled into sheets, or fabricated into complex shapes without losing its structural properties.

8. Resistant to High Temperatures

The alloy has good high-temperature stability, retaining its strength and performance in environments subject to thermal stress, such as gas turbines or industrial heating systems.

9. Electrical Properties

While CuNi30 is not as conductive as pure copper, it retains adequate electrical conductivity for use in electrical contacts, resistors, and other components where corrosion resistance is more critical than maximum conductivity.

Applications:

Marine: Seawater cooling systems, shipbuilding, offshore rigs, propellers, and marine pumps.
Industrial: Heat exchangers, piping systems, fittings, and valves in corrosive or high-temperature environments.
Electrical: Electrical contacts, resistors, and marine instrumentation.
Aerospace & Automotive: High-temperature components, heat shields, and gas turbines.

Main technical data

Type		CuNi1NC003	CuNi2NC005	CuNi4NC007	CuNi6NC010	CuNi8NC012	CuMn3NC012	CuNi10NC015	CuNi14NC020	CuNi19NC025	CuNi23NC030	CuNi30NC035	CuNi34NC040	CuNi44NC050
Composition(%)	Cu	Rest	Rest	Rest	Rest	Rest	Rest	Rest	Rest	Rest	Rest	Rest	Rest	Rest
	Mn	/	/	/	/	/	3	/	0.3	0.5	0.5	1.0	1.0	1.0
	Ni	1	2	4	6	8		10	14.2	19	23	30	34	44
Max.continuous operating temperature(℃)		200	200·	200	220	250	200	250	300	300	300	350	350	400
Resistivity at 20℃(μ m)		0.03 ±10%	0.05 ±10%	0.07 ±10%	0.10 ±10%	0.12 ±10%	0.12 ±10%	0.15 ±10%	0.20 ±5%	0.25 ±5%	0.30 ±5%	0.35 ±5%	0.40 ±5%	0.49 ±5%
Resisitance-temperature coefficient 20-600℃ (×10-5/℃)		＜ 100	＜ 120	＜ 50	＜ 60	＜ 57	＜ 38	＜ 50	＜ 38	＜ 25	＜ 16	＜ 10	＜ -0	＜ -6
Thermovoltage to copper at 20℃ in (μV/K)		-8	-12	-12	-18	-22	1	-25	-28	-32	-34	-37	-39	-43
Mean coefficient of linear thermal expansion, in (10^-6/K) , at a temperature between 20 ℃ and 400 ℃		17.5	17.5	17.5	17.5	17.5	18	17.5	17.5	17.5	17.5	17.0	16.0	15.0
Thermal conductance at 20℃ (W/mK)		145	130	130	92	75	84	59	48	38	33	27	25	23
Specific heat capacity at 20℃ in (20℃ J/gK)		0.38	0.38	0.38	0.38	0.38	0.39	0.38	0.38	0.38	0.38	0.39	0.40	0.41
Density at 20 ℃(g/cm3)		8.9	8.9	8.9	8.9	8.9	8.8	8.9	8.9	8.9	8.9	8.9	8.9	8.9
Melting temperature in (℃)		1085	1090	1090	1095	1097	1050	1100	1115	1135	1150	1170	1180	1280
Min.tensile strength in (N/mm²⁾		210	220	220	250	270	290	290	310	340	350	400	400	420
Elongation(%)		25	25	25	25	25	25	25	25	25	25	25	25	25

Technical data table

Diameter(mm)	NC003 CuNi1	NC005 CuNi2	NC007 CuNi4	NC010 CuNi6	NC012 CuNi8	NC015 CuNi10	NC020 CuNi14	NC025 CuNi19	NC030 CuNi23	NC035 CuNi30	NC040 CuNi34	NC050 CuNi44
Diameter(mm)	NC003 CuNi1	NC005 CuNi2	NC007 CuNi4	NC010 CuNi6	NC012 CuNi8	NC015 CuNi10	NC020 CuNi14	NC025 CuNi19	NC030 CuNi23	NC035 CuNi30	NC040 CuNi34	NC050 CuNi44
0.10	3.82	6.36	8.91	12.73	15.28	19.09	25.46	31.83	38.19	44.56	50.93	62.39
0.11	3.16	5.26	7.37	10.52	12.63	15.78	21.04	26.30	31.56	36.82	42.09	51.56
0.12	2.65	4.42	6.19	8.84	10.61	13.26	17.68	22.10	26.52	30.94	35.37	43.33
0.13	2.26	3.76	5.27	7.53	9.04	11.30	15.07	18.83	22.60	26.36	30.14	36.92
0.14	1.95	3.24	4.55	6.49	7.80	9.74	12.99	16.24	19.48	22.73	25.98	31.83
0.15	1.70	2.82	3.96	5.65	6.79	8.48	11.31	14.14	16.97	19.80	22.64	27.73
0.16	1.49	2.48	3.48	4.97	5.97	7.46	9.95	12.43	14.92	17.40	19.89	24.37
0.17	1.32	2.20	3.08	4.40	5.29	6.60	8.81	11.01	13.21	15.41	17.62	21.59
0.18	1.18	1.96	2.75	3.92	4.72	5.89	7.86	9.82	11.78	13.75	15.72	19.26
0.19	1.06	1.76	2.47	3.52	4.23	5.29	7.05	8.81	10.58	12.34	14.11	17.28
0.20	0.95	1.59	2.23	3.18	3.82	4.77	6.36	7.95	9.54	11.14	12.73	15.60
0.21	0.87	1.44	2.02	2.88	3.46	4.33	5.77	7.21	8.66	10.10	11.55	14.15
0.22	0.79	1.31	1.84	2.63	3.16	3.94	5.26	6.57	7.89	9.20	10.52	12.89
0.23	0.72	1.20	1.68	2.40	2.89	3.61	4.81	6.01	7.22	8.42	9.63	11.79
0.24	0.66	1.10	1.55	2.21	2.65	3.31	4.42	5.52	6.63	7.73	8.84	10.83
0.25	0.61	1.01	1.43	2.03	2.44	3.05	4.07	5.09	6.11	7.13	8.15	9.98
0.26	0.57	0.94	1.32	1.88	2.26	2.82	3.77	4.70	5.65	6.59	7.53	9.23
0.27	0.52	0.87	1.22	1.74	2.10	2.61	3.49	4.36	5.23	6.11	6.99	8.56
0.28	0.49	0.81	1.14	1.62	1.95	2.43	3.25	4.06	4.87	5.68	6.50	7.96
0.29	0.45	0.75	1.06	1.51	1.82	2.27	3.03	3.78	4.54	5.29	6.06	7.42
0.30	0.42	0.70	0.99	1.41	1.70	2.12	2.83	3.53	4.24	4.95	5.66	6.93
0.31	0.40	0.66	0.93	1.32	1.59	1.98	2.65	3.31	3.97	4.63	5.30	6.49
0.32	0.37	0.62	0.87	1.24	1.49	1.86	2.49	3.11	3.73	4.35	4.97	6.09
0.33	0.35	0.58	0.82	1.17	1.40	1.75	2.34	2.92	3.51	4.09	4.68	5.73
0.34	0.33	0.55	0.77	1.10	1.32	1.65	2.20	2.75	3.30	3.85	4.41	5.40
0.35	0.31	0.51	0.73	1.03	1.25	1.55	2.08	2.60	3.11	3.63	4.16	5.09
0.36	0.29	0.49	0.69	0.98	1.18	1.47	1.96	2.46	2.94	3.43	3.93	4.81
0.37	0.28	0.46	0.65	0.93	1.12	1.39	1.86	2.33	2.79	3.25	3.72	4.56
0.38	0.26	0.44	0.62	0.88	1.06	1.32	1.76	2.20	2.64	3.08	3.53	4.32
0.40	0.24	0.39	0.56	0.79	0.95	1.19	1.59	1.99	2.38	2.78	3.18	3.90
0.41	0.23	0.37	0.53	0.76	0.91	1.13	1.51	1.89	2.27	2.65	3.03	3.71
0.42	0.22	0.36	0.51	0.72	0.87	1.08	1.44	1.80	2.16	2.52	2.89	3.54
0.43	0.21	0.34	0.48	0.69	0.83	1.03	1.38	1.72	2.06	2.41	2.75	3.37
0.44	0.20	0.32	0.46	0.66	0.79	0.98	1.31	1.64	1.97	2.30	2.63	3.22
0.45	0.19	0.31	0.44	0.63	0.75	0.94	1.26	1.57	1.88	2.20	2.52	3.08
0.46	0.18	0.30	0.42	0.60	0.72	0.90	1.20	1.50	1.80	2.10	2.41	2.95
0.47	0.17	0.28	0.40	0.58	0.69	0.86	1.15	1.44	1.72	2.01	2.31	2.82
0.48	0.17	0.27	0.39	0.55	0.66	0.82	1.10	1.38	1.65	1.93	2.21	2.71
0.49	0.16	0.26	0.37	0.53	0.64	0.79	1.06	1.33	1.59	1.85	2.12	2.60
0.50	0.15	0.25	0.36	0.51	0.61	0.76	1.01	1.27	1.52	1.78	2.04	2.50
0.51	0.15	0.24	0.34	0.49	0.59	0.73	0.98	1.22	1.46	1.71	1.96	2.40
0.52	0.14	0.23	0.33	0.47	0.57	0.70	0.94	1.18	1.41	1.65	1.88	2.31
0.53	0.14	0.22	0.32	0.45	0.54	0.67	0.91	1.13	1.35	1.59	1.81	2.22
0.54	0.13	0.22	0.31	0.44	0.52	0.65	0.87	1.09	1.30	1.53	1.75	2.14
0.55	0.13	0.21	0.29	0.42	0.51	0.63	0.84	1.05	1.26	1.47	1.68	2.06
0.56	0.12	0.20	0.28	0.41	0.49	0.60	0.81	1.02	1.21	1.42	1.62	1.99
0.57	0.12	0.19	0.27	0.39	0.47	0.58	0.78	0.98	1.17	1.37	1.57	1.92
0.58	0.11	0.19	0.27	0.38	0.45	0.56	0.76	0.95	1.13	1.32	1.51	1.85
0.59	0.11	0.18	0.26	0.37	0.44	0.54	0.73	0.91	1.09	1.28	1.46	1.79
0.60	0.11	0.18	0.25	0.35	0.42	0.53	0.71	0.88	1.06	1.24	1.41	1.73

Tolerance of ohm/m: ±5%
Round wire: range from 0.04mm (0.0016″) to 12mm (0.4724″)
Ribbon: range from 0.05mm (0.002″) to 6mm (0.2362″), Max ratio width : thickness = 10:1
