High Purity And Versatile Nickel205/N02205 Pure Nickel Wire For Extreme Environments

MOQ:	5kg
Standard Packaging:	Packed with waterproof paper or weave bag, into pallets or wooden case. Special packaging requirements can also be accommodated.
Delivery Period:	3 days
Payment Method:	T/T, D/P
Supply Capacity:	30 Tons per day

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Senphus

Certification

ISO9001

Model Number

Nickel205/N02205

Place Of Orig.:

Jiangsu, China

Application:

Electrical Industry

Density:

Thermal Conductivity:

75.00

Electrical Resistivity At 20°C:

Color:

Silvery White

Tensile Strength（N/mm²）:

400-530

Elongation（% At L0=100 Mm）:

20-30

Thermal Linear Expansion Coeff. (20-95 °C):

Highlight:

Versatile Pure Nickel Wire

Extreme Environments Pure Nickel Wire

High Purity Pure Nickel Wire

Product Description

High Purity And Versatile Nickel205/N02205 Pure Nickel Wire For Extreme Environments

Nickel 205 alloy, known for its excellent mechanical properties and corrosion resistance, is a wrought nickel alloy with a composition of at least 99% nickel . It is ferromagnetic below 360°C (680°F) and contains small additions of aluminum and titanium, which contribute to its mechanical and electrical properties . The alloy is characterized by its high electrical and thermal conductivity, making it suitable for electrical components and heat exchangers . It exhibits good resistance to many corrosives, particularly hydroxides, and performs well in both reducing and oxidizing environments .

Key applications of Nickel 205 include magnetostrictive transducers, mechanical supports, transistor housings, battery cases, lead wires, and anodes and grids of electronic valves . It is also used in chemical processing for handling acids, alkalis, and chemicals, as well as in marine applications where resistance to seawater and brine solutions is required . The alloy's high resistance to caustic alkalis makes it outstanding for use up to and including the molten state . With its high nickel content and minimal impurities, Nickel 205 is a commercially pure alloy that maintains its mechanical properties over a wide range of temperatures .

Nominal Chemical Composition (%)

Alloy	Ni	Mn	Fe	Si	Cu	C	Ti
Ni200	≥ 99.2	≤ 0.30	≤ 0.20	≤ 0.10	≤ 0.20	≤ 0.10	≤ 0.10
Ni201	≥ 99.2	≤ 0.30	≤ 0.20	≤ 0.10	≤ 0.20	≤ 0.05	≤ 0.10
Ni205	≥ 99.6	≤ 0.20	≤ 0.20	≤ 0.10	≤ 0.10	≤ 0.05	≤ 0.05

Size Range

Type	Dia. (mm)	Width (mm)	Thickness (mm)
Wire	0.04 - 12.0	-	-
Ribbon	-	2.0	≥ 0.08

Physical Properties (at room temperature)

Alloy	Density (g/cm³)	Thermal Conductivity (W/m K)	Thermal Linear Expansion Coeff. (20-95 ℃) (10^-6/K)	Electrical Resistivity at 20 ℃ (μΩ-cm)
Ni200/201	8.89	70.20	13.3	9
Ni205	8.89	75.00	13.3	8.9

Mechanical Properties (for cold drawn annealed wire)

Alloy	Tensile strength (N/mm²)		Elongation (% at L₀=100mm)
Alloy	Min	Max	Min	Max
Ni200/201	400	550	20	30
Ni205	400	530	20	30

Some key features of Ni205 (also known as UNS N02205) include:

1. High Purity Nickel Content: Ni205 contains at least 99% nickel, making it a commercially pure wrought nickel alloy.

2. Ferromagnetic Property: The alloy is ferromagnetic below 360°C (680°F).

3. Aluminum and Titanium Additions: Small additions of aluminum and titanium enhance its mechanical and electrical properties.

4. Corrosion Resistance: Ni205 exhibits excellent resistance to corrosion in various environments, including acids, alkalis, and neutral salts.

5. Mechanical Properties: It has a tensile strength of 345 MPa (50000 psi) and a yield strength of 90 MPa (13100 psi) in the annealed condition, with an elongation at break of 45%.

6. Thermal Properties: The thermal expansion coefficient is 13.3 µm/m°C (7.39 µin/in°F) and the thermal conductivity is 75 W/mK (521 BTU.in/hrft².°F).

7. Electrical Conductivity: Ni205 has high electrical conductivity, making it suitable for electrical components.

8. Non-Heat Treatable: The alloy is not heat-treatable and may be annealed after cold working.

9. Machinability: Ni205 can be machined using high-speed tool steels.

10. Weldability: The alloy can be welded using all common welding techniques.

These features make Ni205 suitable for a wide range of applications, particularly in environments requiring high purity, corrosion resistance, and electrical conductivity.

Application:

Aerospace Industry: Due to its ability to resist high temperatures and corrosive environments, Nickel 205 is used in aerospace components, including jet engine parts and aircraft exhaust systems.
Chemical Processing: It is commonly used in chemical reactors, valves, piping, and other equipment exposed to corrosive chemicals, especially in industries like petrochemical and pharmaceutical manufacturing.
Electronics: Nickel 205 is used in electrical connectors, electromagnetic shielding, and other components that require low magnetic permeability and good conductivity.

Comparison to Other Nickel Alloys:

Compared to other high-purity nickel alloys (such as Nickel 200), Nickel 205 has similar properties but may be preferred in certain applications that require slightly different characteristics, such as a higher degree of purity and better resistance to specific forms of corrosion.

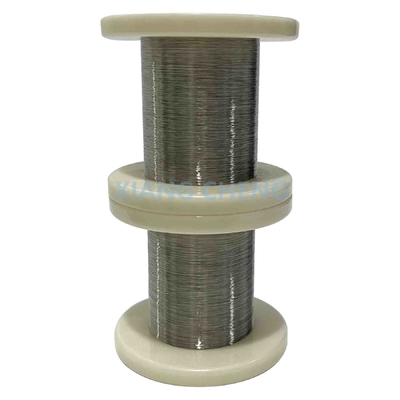

High Purity And Versatile Nickel205/N02205 Pure Nickel Wire For Extreme Environments 0
