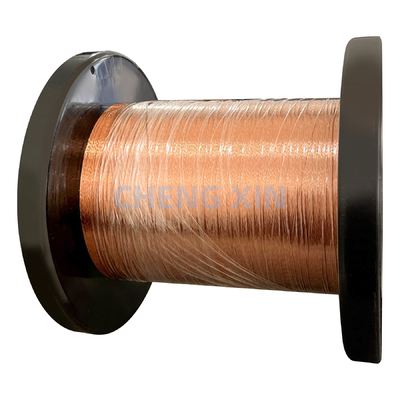

CuMg0.4/2.1322 High Temperature Alloy Wire For High-Stress Applications

MOQ: TBD
Standard Packaging: Packed with waterproof paper or weave bag, into pallets or wooden case. Special packaging requirements can also be accommodated.
Delivery Period: 7 days
Payment Method: T/T,D/P
Supply Capacity: 30 Tons per day
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Senphus
Certification
ISO9001
Model Number
CuMg0.4/2.1322
Name:
CuMg0.4/2.1322 High Temperature Alloy Wire
Place Of Orig:
China
Type:
High Temperture
Density:
8.89 G/cm³
Melting Point:
1083 ℃
Electrical Conductivity:
75-80% IACS
Resistivity (20°C):
0.022 - 0.025 µΩ·m
Tensile Strength:
300 - 500 MPa
Elongation:
20%
Thermal Conductivity:
260 W/m·K
Highlight:

Welding High Temperature Alloy Wire

,

Inconel 718 High Temperature Alloy Wire

,

High Temperature inconel 718 welding wire

Product Description

CuMg0.4/2.1322 High Temperature Alloy Wire For High-Stress Applications


CuMg0.4 (2.1322) is a copper-magnesium alloy wire known for its high strength, good conductivity, and excellent corrosion resistance. With 0.4% magnesium, it offers improved mechanical properties while maintaining good electrical performance. CuMg0.4 (also known as 2.1322) is a Copper-Magnesium (Cu-Mg) alloy wire that combines the excellent electrical and thermal conductivity of copper with the strength and corrosion resistance of magnesium. It is primarily used in applications requiring high conductivity, lightweight properties, and mechanical strength.



Chemical Composition Wt.% % Mg Other Cu
Min 0.3　
　
Max 0.5 0.3 Bal.


Physical Constants Density(g/cm³) 8.89
Melting Range(℃) 1083°C


Trade Code

CN JP US EU DER FR RU
GB ISC JIS ASTM UNS ISO COMMERCIAL  CODE DIN/DIN EN W-Nr. NF EN/NF GOST
TMg0.8 C18661 C1861
C18661		 99.59Cu-.4Mg-.001P C18661 CuMgP C18661 CuMg0.4 C18661
2.1322		 CuMgP
C18661		 БрМгФ0.4-0.01



Key Features:

  • High tensile strength (up to 500 MPa), making it suitable for demanding mechanical applications.
  • Good electrical conductivity (~50-60% IACS), balancing strength and conductivity.
  • Excellent corrosion and oxidation resistance, ideal for outdoor and high-temperature applications.
  • Lightweight alternative to pure copper, reducing material costs and weight.


Applications

  • Overhead Electrical Conductors: Used in power transmission lines due to its balance of strength and conductivity.
  • Automotive Wiring & Components: Used in electric vehicles (EVs) and automotive power cables.
  • Railway & High-Speed Trains: Employed in catenary wires for railway electrification.
  • Telecommunication Wires: Used in signal and transmission cables.
  • Aerospace & Military Applications: Suitable for lightweight electrical components.


Advantages

  • High Strength & Lightweight: Compared to pure copper, CuMg0.4 has better mechanical strength while maintaining relatively low density.
  • Good Electrical Conductivity: Although lower than pure copper, it still maintains high electrical efficiency.
  • Corrosion Resistance: Enhanced resistance to oxidation and corrosion compared to standard copper alloys.
  • Wear Resistance: Suitable for applications requiring long-term durability.CuMg0.4/2.1322 High Temperature Alloy Wire For High-Stress Applications 0CuMg0.4/2.1322 High Temperature Alloy Wire For High-Stress Applications 1

CuMg0.4/2.1322 High Temperature Alloy Wire For High-Stress Applications 2
