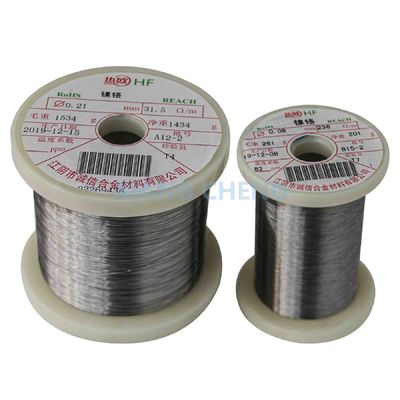

NiCr Alloy Cr20Ni30 High Resistance For Various Demanding Applications

MOQ:	5kg
Standard Packaging:	Packed with waterproof paper or weave bag, into pallets or wooden case. Special packaging requirements can also be accommodated.
Delivery Period:	3 days
Payment Method:	T/T, D/P
Supply Capacity:	30 Tons per day

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Senphus

Certification

ISO9001

Model Number

Cr20Ni30

Place Of Orig:

China

Type:

Ni-Cr-Fe Alloys

Application:

Heating Element And Resistor

Color:

Shiny Silver Or Dark Gray

Density:

Resistivity At 20 ℃:

1.06±0.05

Melting Point（℃）:

Thermal Conductivity:

43.8 (KJ/m H ℃ )

Elongation At Rupture（% ):

Highlight:

Cr20Ni30 NiCr Alloy

High Resistance NiCr Alloy

Various Demanding Applications NiCr Alloy

Product Description

NiCr Alloy Cr20Ni30 High Resistance for Various Demanding Applications

Cr20Ni30 is an austenitic stainless steel alloy composed of approximately 20% chromium and 30% nickel. This high-chromium-nickel alloy is designed for applications where resistance to high temperatures, oxidation, and corrosion is critical. The alloy’s chromium content offers excellent protection against oxidation, while the nickel enhances its toughness, ductility, and resistance to corrosion in both acidic and alkaline environments.

Cr20Ni30 is known for its exceptional resistance to high-temperature oxidation, making it suitable for use in high-heat environments such as furnaces, gas turbines, and heat exchangers. The alloy maintains its strength and performance even under elevated temperatures, ensuring long-term durability in challenging conditions. Additionally, the alloy is resistant to stress corrosion cracking and thermal cycling, further enhancing its reliability.

The austenitic structure of Cr20Ni30 provides good weldability and formability, making it versatile for complex, welded applications. Its non-magnetic properties and superior mechanical properties at both high and low temperatures make it ideal for industries like aerospace, power generation, and chemical processing.

In summary, Cr20Ni30 combines excellent corrosion resistance, high-temperature performance, and good mechanical properties, making it a highly effective material for applications exposed to extreme conditions and corrosive environments.

Chemical Composition Wt.%

Cr20Ni30

Min

Max

Bal.

0.08

0.02

0.015

Main characteristics of Ni-Cr and Ni-Cr-Fe electric heating alloys

Type Performance		Cr30Ni70	Cr15Ni60	Cr20Ni35	Cr20Ni80	Cr20Ni30	Cr25Ni20
Main Chemical composition	Ni	Rest	55.0-61.0	34.0-37.0	Rest	30.0-34.0	19.0-22.0
	Cr	28.0-31.0	15.0-18.0	18.0-21.0	20.0-23.0	18.0-21.0	24.0-26.0
	Fe	≤ 1.0	Rest	Rest	≤ 1.0	Rest	Rest
Max. continuous service temp. of element (℃)		1250	1150	1100	1200	1100	1050
Resistivity at 20 ℃(μΩm)		1.18±0.05	1.12±0.05	1.04±0.05	1.09±0.05	1.06±0.05	0.95±0.05
Density(g/cm3)		8.10	8.20	7.90	8.40	7.90	7.15
Thermal condyctivity (KJ/m·h·℃)		45.2	45.2	43.8	60.3	43.8	43.8
Coefficient of lines expansion (α×10-6/℃)		17.0	17.0	19.0	18.0	19.0	19.0
Melting point (approx.)(℃)		1380	1390	1390	1400	1390	1400
Elonation at rupture(%)		＞20	＞20	＞20	＞20	＞20	＞20
Micrographic structure		Austenite	Austenite	Austenite	Austenite	Austenite	Austenite
Magnetic properties		Non-magnetic	Low-magnetic	Low-magnetic	Non-magnetic	Low-magnetic	Non-magnetic
Note:The various grades of electric resistance alloy material are blended with the amountof rare earth, titanium and other trace elements, to improve the processing performance andextend the period of the uselife.

Mechanical properties	Condition	Tensile Strength (UTS)(Rm)	Elongation(A5)
	D>3, T>0.2	≥600 MPa	≥25%
	0.1<D<0.3, T>0.2	≥600 MPa	≥20%

Some key features of Cr20Ni30 include:

1. High-Temperature Resistance:

Cr20Ni30 exhibits excellent resistance to oxidation and scaling at high temperatures, making it suitable for use in high-heat environments like furnaces, gas turbines, and heat exchangers.

2. Corrosion Resistance:

The alloy has strong resistance to a wide range of corrosive environments, including both acidic and alkaline conditions. It performs well in chemical processing applications and marine environments.

3. Austenitic Structure:

The alloy has an austenitic (face-centered cubic) crystal structure, which provides excellent mechanical properties, such as strength, toughness, and ductility. It also offers non-magnetic properties.

4. Good Weldability:

Cr20Ni30 can be easily welded using standard welding techniques, ensuring versatility in fabrication for complex shapes and structures.

5. Stress Corrosion Cracking Resistance:

Due to its high nickel content, Cr20Ni30 exhibits strong resistance to stress corrosion cracking, especially in chloride environments.

6. Thermal Cycling Resistance:

It maintains its strength and mechanical properties even under thermal cycling and extreme temperature fluctuations.

Applications:

Heat Exchangers: Due to its high-temperature oxidation resistance, it is used in heat exchangers in power plants and chemical processing.
Gas Turbines: The alloy’s ability to withstand extreme heat and corrosion makes it ideal for turbine components.
Furnaces: Cr20Ni30 is commonly used for furnace parts exposed to high temperatures and aggressive atmospheres.
Chemical Reactors: Its excellent corrosion resistance makes it suitable for use in chemical processing equipment.
Boiler Components: In power generation, Cr20Ni30 is used in boilers that require resistance to high heat and stress.
Marine Environments: Due to its resistance to corrosion, particularly in chloride-rich environments, it is used in marine applications like ship components and offshore platforms.
Aerospace Components: Used in parts exposed to high temperatures, such as engine components and exhaust systems.
Industrial Incinerators: The material's resistance to high temperatures and corrosion makes it useful in waste incineration systems.

In short, Cr20Ni30 is ideal for industries requiring high performance under elevated temperatures and aggressive, corrosive environments.

Technical data of wires

Dia. (mm)	Cross-sectional area (mm²)	Weight/Meter (g/m)	Resistance/Meter at 20 ℃ (Ω/m)	Dia. (mm)	Cross-sectional area (mm²)	Weight/Meter (g/m)	Resistance/Meter at 20 ℃ (Ω/m)
0.018	0.000255	0.002117	3410-4610	0.25	0.04909	0.4074	20.88-23.54
0.020	0.000314	0.002606	2940-3740	0.28	0.06158	0.5111	16.64-18.76
0.022	0.000380	0.003154	2440-3100	0.30	0.07069	0.5867	14.49-16.35
0.025	0.000491	0.004075	1880-2400	0.32	0.07548	0.6265	12.74-14.36
0.028	0.000616	0.005113	1530-1870	0.33	0.08553	0.7099	12.20-13.40
0.030	0.000707	0.005868	1338-1696	0.38	0.1134	0.9412	9.13-10.09
0.032	0.000804	0.006673	1180-1440	0.40	0.1257	1.0433	8.24-9.108
0.035	0.000962	0.007985	981-1200	0.41	0.132	1.0956	7.68-8.89
0.040	0.001257	0.01043	780.7-954.1	0.45	0.159	1.3197	6.51-7.196
0.045	0.00159	0.0132	594-726	0.50	0.1963	1.6293	5.273-5.829
0.050	0.001963	0.01629	499.6-610.6	0.55	0.2376	1.9721	4.518-4.994
0.055	0.00238	0.01975	407-477	0.60	0.2827	2.3464	3.797-4.197
0.063	0.00312	0.02590	321.41-377.31	0.65	0.3318	2.7539	3.235-3.575
0.070	0.00385	0.03196	260.5-305.9	0.70	0.3848	3.1938	2.789-3.083
0.080	0.005027	0.04172	199.5-234.1	0.75	0.4418	3.6669	2.43-2.686
0.090	0.006362	0.0528	157.6-185.0	0.80	0.5027	4.1724	2.136-2.36
0.100	0.007854	0.0652	127.7-149.9	0.85	0.5674	4.7094	1.891-2.091
0.110	0.009852	0.08177	105.5-123.9	0.90	0.6362	5.2805	1.687-1.865
0.120	0.01227	0.1018	88.67-104.1	0.95	0.7088	5.883	1.46-1.62
0.140	0.01539	0.1277	65.85-75.77	1.00	0.7854	6.5188	1.367-1.511
0.150	0.01767	0.1467	56.75-66.63	1.10	0.9503	7.8875	1.13-1.26
0.160	0.02011	0.01669	50.42-58.00	1.12	0.9852	8.1772	1.05-1.17
0.170	0.022700	0.1884	44.18-51.86	1.18	1.0936	9.0769	0.95-1.05
0.180	0.02545	0.2112	40.26-45.40	1.20	1.313	10.8979	0.79-0.87
0.190	0.02835	0.2353	35.37-41.53	1.30	1.327	11.0141	0.78-0.86
0.200	0.03142	0.2608	32.62-36.78	1.40	1.539	12.7737	0.70-0.77
0.212	0.035300	0.2930	28.41-33.35	1.50	1.767	14.6661	0.60-0.67
0.220	0.03801	0.3155	26.65-30.39	1.60	2.011	16.8924	0.52-0.58

The tolerance or wires diameter

Wires	Dia.(mm)	Tolerance
	0.018-0.025	±0.001
	0.028-0.035	±0.0015
	0.040-0.055	±0.002
	0.070	±0.0025
	0.08-0.10	±0.003
	0.11-0.14	±0.004
	0.16-0.20	±0.005
	0.22-0.25	±0.006
	0.28-0.30	±0.007
	0.32-0.40	±0.01
	0.41-0.50	±0.015
	0.55-0.80	+0.02/-0.03
	0.85-1.00	+0.02/-0.03
	1.10-1.50	±0.03
Note:special specification can be produced as per client's request.

Technical data of ribbon

Thickness × Width(mm)	Resistance/meter(20 ℃) (Ω/m)	Surface area/ohm (20℃) (cm²/Ω)	Weight/meter (g/m)	Surface area/meter (cm²/m)
0.09x2.5	5.27	9.84	1.72	51.8
0.08x0.2	74	0.0756	0.122	5.6
0.08x0.3	49.4	0.154	0.183	7.6
0.08x0.4	37	0.259	0.244	9.6
0.08x0.5	29.6	0.392	0.305	11.6
0.08x0.6	24.7	0.551	0.367	13.6
0.08x0.7	21.2	0.737	0.428	15.6
0.08x0.8	18.5	0.951	0.489	17.6
0.08x0.9	16.5	1.19	0.55	19.6
0.08x1.0	14.8	1.46	0.611	21.6
0.08x1.2	12.3	2.07	0.733	25.6
0.08x1.5	9.87	3.2	0.916	31.6
0.08x1.8	8.23	4.57	1.1	37.6
0.08x2.0	7.4	5.62	1.22	41.6
0.07x0.2	84.6	0.0638	0.107	5.4
0.07x0.3	56.4	0.131	0.16	7.4
0.07x0.4	42.3	0.222	0.214	9.4
0.07x0.5	33.9	0.337	0.267	11.4
0.07x0.6	28.2	0.475	0.321	13.4
0.07x0.7	24.2	0.637	0.374	15.4
0.07x0.8	21.2	0.822	0.428	17.4
0.07x0.9	18.8	1.03	0.481	19.4
0.07x1.0	16.9	1.26	0.535	21.4
0.07x1.2	14.1	1.8	0.641	25.4
0.07x1.5	11.3	2.78	0.802	31.4
0.06x0.2	98.7	0.0527	0.0916	5.2
0.06x0.3	65.8	0.109	0.137	7.2
0.06x0.4	49.4	0.186	0.183	9.2
0.06x0.5	39.5	0.284	0.229	11.2
0.06x0.6	32.9	0.401	0.275	13.2
0.06x0.7	28.2	0.539	0.321	15.2
0.06x0.8	24.7	0.697	0.367	17.5
0.06x0.9	21.9	0.875	0.412	19.2
0.06x1.0	19.7	1.07	0.458	21.2
0.06x1.2	16.5	1.53	0.55	25.2
0.05x0.2	118	0.0422	0.0764	5.00
0.05x0.3	79	0.0886	0.115	7.00
0.05x0.4	59.2	0.152	0.153	9.00
0.05x0.5	47.4	0.232	0.191	11.00
0.05x0.6	39.5	0.329	0.229	13.00
0.05x0.7	33.9	0.443	0.267	15.0
0.05x0.8	29.6	0.574	0.305	17.0
0.05x0.9	16.3	0.722	0.344	19.0
0.05x1.0	23.7	0.886	0.382	21.0
Ribbon is rolled by the wire, the actual cross-sectional area of the ribbon is smaller 8％ than calculated by the rectangular.
