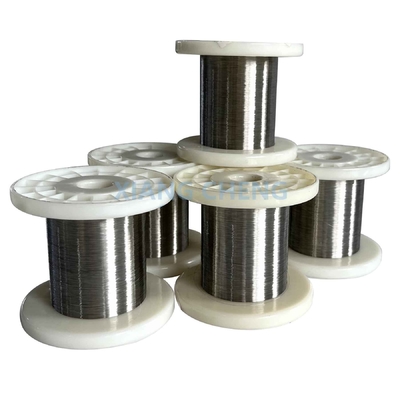

CuNi Alloy CuNi30 NC035 Teh Perfect Alloy For Heating Solution

MOQ:	5kg
Standard Packaging:	Packed with waterproof paper or weave bag, into pallets or wooden case. Special packaging requirements can also be accommodated.
Delivery Period:	3 days
Payment Method:	T/T, D/P
Supply Capacity:	30 Tons per day

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Senphus

Certification

ISO9001

Model Number

CuNi30/NC035

Place Of Origin:

Jiangsu, China

Type:

Nickel Wire

Application:

Heating,household Electrical Application

Color:

Silvery White/bright Or Oxidized

Product Name:

CuNi30 NC035 Copper Nickel Wire

Resistivity:

0.35 ±5%

Melting Temperature In ℃:

Min.tensile Strength In N/mm²:

Elongation:

Density:

Highlight:

Heating Solution CuNi Alloy

NC035 CuNi Alloy

CuNi30 CuNi Alloy

Product Description

CuNi Alloy CuNi30 NC035 teh perfect alloy for heating solution

CuNi30 is a copper-nickel alloy consisting of approximately 70% copper and 30% nickel, known for its excellent corrosion resistance, particularly in seawater and marine environments. Its high nickel content enhances its oxidation resistance and mechanical strength, making it ideal for use in offshore structures, shipbuilding, seawater cooling systems, and other demanding applications. CuNi30 also offers good resistance to erosion and cavitation, making it suitable for marine components like propellers and pumps exposed to turbulent water flow.

In addition to its strength and durability, CuNi30 provides good thermal conductivity and performs well under high-temperature conditions, making it useful in heat exchangers and industrial systems. The alloy is non-magnetic, which is beneficial for applications in electronic components and marine instrumentation where magnetic interference is undesirable. CuNi30 is highly workable, allowing for easy welding, machining, and forming into various shapes for custom applications. Overall, CuNi30 combines corrosion resistance, strength, and versatility, making it ideal for marine, industrial, and electrical applications.

Chemical Composition Wt.%	%	Ni	Cu	Mn
	Min
	Max	30	Rest	1

Main physical properties:

Max continuous operating temperature ℃	350
Resistance temperature coefficient x 10^-5/℃(20℃-600℃)	<10
Thermovoltage to copper at 20℃ in μV/K	-37
Thermal expansion coefficient ×10^-6/K(20℃-400℃)	17.0
Thermal conductance at 20℃ W/mK	27
Specific heat capacity at 20℃ J/gK	0.39

Some key features of CuNi30 include:

1. Excellent Corrosion Resistance

CuNi30's high nickel content provides exceptional resistance to corrosion, particularly in seawater, moisture, and aggressive environments. This makes it perfect for heating elements that will be exposed to corrosive conditions, such as in marine heating systems or industrial heating systems.

2. High Durability and Strength

CuNi30 is highly durable and has strong mechanical strength, enabling it to withstand high temperatures and mechanical stress without degradation. It is perfect for heating applications where long-term performance is required, such as heat exchangers, boilers, or industrial furnaces.

3. Resistance to Erosion and Cavitation

CuNi30’s resistance to erosion and cavitation (the formation of vapor bubbles that can damage materials) is crucial in environments where liquids are in motion, such as in cooling systems, heating systems in marine environments, and piping exposed to turbulent flows.

4. Thermal Conductivity

CuNi30 offers good thermal conductivity, which is essential for efficient heat transfer in heating applications like heat exchangers, radiators, or heating coils. It allows heat to be transferred rapidly from one medium to another, improving energy efficiency in thermal management systems.

5. Non-Magnetic

The non-magnetic properties of CuNi30 make it ideal for electrical heating elements, such as those used in industrial heating systems where magnetic interference must be minimized. This property is beneficial in applications where sensitive instrumentation or electrical circuits are involved.

6. Workability

CuNi30 can be easily machined, welded, and fabricated into complex shapes, making it adaptable for a variety of heating solutions, including custom heating elements, tubes, fittings, and coils.

7. High-Temperature Performance

CuNi30 has excellent high-temperature stability, retaining its mechanical strength and corrosion resistance even in extreme heat environments. This makes it a suitable choice for heating solutions in industries such as aerospace, power generation, and metal processing, where materials are exposed to high heat for extended periods.

8. Resistant to Oxidation

The alloy is highly resistant to oxidation, which means it can maintain its structural integrity and heat efficiency even in environments with high temperatures and the presence of oxygen, such as in combustion chambers and high-temperature industrial applications.

9. Electrical Heating Applications

CuNi30 is often used for resistance heating elements in electric heaters, resistive heating coils, and electrical contacts. Its resistivity combined with corrosion resistance makes it ideal for use in electrical heating elements that require a longlifespan under high thermal stress.

Applications:

Heat Exchangers: CuNi30 is widely used in heat exchangers due to its excellent thermal conductivity and resistance to corrosion.
Boilers and Furnaces: Its high-temperature performance makes it suitable for use in boilers, furnaces, and industrial heating systems.
Electrical Heating Elements: CuNi30 is used in the manufacturing of resistance heaters, electric heating elements, and thermal coils.
Marine Heating Systems: Due to its corrosion resistance, it is ideal for heating systems in marine environments, where saltwater exposure is a concern.
Cooling Systems: CuNi30 is also used in cooling applications that require efficient heat dissipation and resistance to corrosion, particularly in systems with liquid flow.

CuNi30 (NC035) is an excellent choice for heating solutions, offering a perfect combination of corrosion resistance, thermal conductivity, mechanical strength, and high-temperature performance. Whether for marine heating systems, industrial boilers, electrical heating elements, or heat exchangers, CuNi30 ensures efficiency and durability, making it a reliable material for a wide range of demanding heating applications.

Main technical data

Type		CuNi1 NC003	CuNi2 NC005	CuNi4 NC007	CuNi6 NC010	CuNi8 NC012	CuMn3 NC012	CuNi10 NC015	CuNi14 NC020	CuNi19 NC025	CuNi23 NC030	CuNi30 NC035	CuNi34 NC040	CuNi44 NC050
Composition(%)	Cu	Rest	Rest	Rest	Rest	Rest	Rest	Rest	Rest	Rest	Rest	Rest	Rest	Rest
	Mn	/	/	/	/	/	3	/	0.3	0.5	0.5	1.0	1.0	1.0
	Ni	1	2	4	6	8		10	14.2	19	23	30	34	44
Max.continuous operating temperature(℃)		200	200·	200	220	250	200	250	300	300	300	350	350	400
Resistivity at 20℃(μ m)		0.03 ±10%	0.05 ±10%	0.07 ±10%	0.10 ±10%	0.12 ±10%	0.12 ±10%	0.15 ±10%	0.20 ±5%	0.25 ±5%	0.30 ±5%	0.35 ±5%	0.40 ±5%	0.49 ±5%
Resisitance-temperature coefficient 20-600℃ (×10-5/℃)		＜ 100	＜ 120	＜ 50	＜ 60	＜ 57	＜ 38	＜ 50	＜ 38	＜ 25	＜ 16	＜ 10	＜ -0	＜ -6
Thermovoltage to copper at 20℃ in (μV/K)		-8	-12	-12	-18	-22	1	-25	-28	-32	-34	-37	-39	-43
Mean coefficient of linear thermal expansion, in (10^-6/K) , at a temperature between 20 ℃ and 400 ℃		17.5	17.5	17.5	17.5	17.5	18	17.5	17.5	17.5	17.5	17.0	16.0	15.0
Thermal conductance at 20℃ (W/mK)		145	130	130	92	75	84	59	48	38	33	27	25	23
Specific heat capacity at 20℃ in (20℃ J/gK)		0.38	0.38	0.38	0.38	0.38	0.39	0.38	0.38	0.38	0.38	0.39	0.40	0.41
Density at 20 ℃(g/cm3)		8.9	8.9	8.9	8.9	8.9	8.8	8.9	8.9	8.9	8.9	8.9	8.9	8.9
Melting temperature in (℃)		1085	1090	1090	1095	1097	1050	1100	1115	1135	1150	1170	1180	1280
Min.tensile strength in (N/mm²⁾		210	220	220	250	270	290	290	310	340	350	400	400	420
Elongation(%)		25	25	25	25	25	25	25	25	25	25	25	25	25

Technical data table

Diameter(mm)	NC003 CuNi1	NC005 CuNi2	NC007 CuNi4	NC010 CuNi6	NC012 CuNi8	NC015 CuNi10	NC020 CuNi14	NC025 CuNi19	NC030 CuNi23	NC035 CuNi30	NC040 CuNi34	NC050 CuNi44
Diameter(mm)	NC003 CuNi1	NC005 CuNi2	NC007 CuNi4	NC010 CuNi6	NC012 CuNi8	NC015 CuNi10	NC020 CuNi14	NC025 CuNi19	NC030 CuNi23	NC035 CuNi30	NC040 CuNi34	NC050 CuNi44
0.10	3.82	6.36	8.91	12.73	15.28	19.09	25.46	31.83	38.19	44.56	50.93	62.39
0.11	3.16	5.26	7.37	10.52	12.63	15.78	21.04	26.30	31.56	36.82	42.09	51.56
0.12	2.65	4.42	6.19	8.84	10.61	13.26	17.68	22.10	26.52	30.94	35.37	43.33
0.13	2.26	3.76	5.27	7.53	9.04	11.30	15.07	18.83	22.60	26.36	30.14	36.92
0.14	1.95	3.24	4.55	6.49	7.80	9.74	12.99	16.24	19.48	22.73	25.98	31.83
0.15	1.70	2.82	3.96	5.65	6.79	8.48	11.31	14.14	16.97	19.80	22.64	27.73
0.16	1.49	2.48	3.48	4.97	5.97	7.46	9.95	12.43	14.92	17.40	19.89	24.37
0.17	1.32	2.20	3.08	4.40	5.29	6.60	8.81	11.01	13.21	15.41	17.62	21.59
0.18	1.18	1.96	2.75	3.92	4.72	5.89	7.86	9.82	11.78	13.75	15.72	19.26
0.19	1.06	1.76	2.47	3.52	4.23	5.29	7.05	8.81	10.58	12.34	14.11	17.28
0.20	0.95	1.59	2.23	3.18	3.82	4.77	6.36	7.95	9.54	11.14	12.73	15.60
0.21	0.87	1.44	2.02	2.88	3.46	4.33	5.77	7.21	8.66	10.10	11.55	14.15
0.22	0.79	1.31	1.84	2.63	3.16	3.94	5.26	6.57	7.89	9.20	10.52	12.89
0.23	0.72	1.20	1.68	2.40	2.89	3.61	4.81	6.01	7.22	8.42	9.63	11.79
0.24	0.66	1.10	1.55	2.21	2.65	3.31	4.42	5.52	6.63	7.73	8.84	10.83
0.25	0.61	1.01	1.43	2.03	2.44	3.05	4.07	5.09	6.11	7.13	8.15	9.98
0.26	0.57	0.94	1.32	1.88	2.26	2.82	3.77	4.70	5.65	6.59	7.53	9.23
0.27	0.52	0.87	1.22	1.74	2.10	2.61	3.49	4.36	5.23	6.11	6.99	8.56
0.28	0.49	0.81	1.14	1.62	1.95	2.43	3.25	4.06	4.87	5.68	6.50	7.96
0.29	0.45	0.75	1.06	1.51	1.82	2.27	3.03	3.78	4.54	5.29	6.06	7.42
0.30	0.42	0.70	0.99	1.41	1.70	2.12	2.83	3.53	4.24	4.95	5.66	6.93
0.31	0.40	0.66	0.93	1.32	1.59	1.98	2.65	3.31	3.97	4.63	5.30	6.49
0.32	0.37	0.62	0.87	1.24	1.49	1.86	2.49	3.11	3.73	4.35	4.97	6.09
0.33	0.35	0.58	0.82	1.17	1.40	1.75	2.34	2.92	3.51	4.09	4.68	5.73
0.34	0.33	0.55	0.77	1.10	1.32	1.65	2.20	2.75	3.30	3.85	4.41	5.40
0.35	0.31	0.51	0.73	1.03	1.25	1.55	2.08	2.60	3.11	3.63	4.16	5.09
0.36	0.29	0.49	0.69	0.98	1.18	1.47	1.96	2.46	2.94	3.43	3.93	4.81
0.37	0.28	0.46	0.65	0.93	1.12	1.39	1.86	2.33	2.79	3.25	3.72	4.56
0.38	0.26	0.44	0.62	0.88	1.06	1.32	1.76	2.20	2.64	3.08	3.53	4.32
0.40	0.24	0.39	0.56	0.79	0.95	1.19	1.59	1.99	2.38	2.78	3.18	3.90
0.41	0.23	0.37	0.53	0.76	0.91	1.13	1.51	1.89	2.27	2.65	3.03	3.71
0.42	0.22	0.36	0.51	0.72	0.87	1.08	1.44	1.80	2.16	2.52	2.89	3.54
0.43	0.21	0.34	0.48	0.69	0.83	1.03	1.38	1.72	2.06	2.41	2.75	3.37
0.44	0.20	0.32	0.46	0.66	0.79	0.98	1.31	1.64	1.97	2.30	2.63	3.22
0.45	0.19	0.31	0.44	0.63	0.75	0.94	1.26	1.57	1.88	2.20	2.52	3.08
0.46	0.18	0.30	0.42	0.60	0.72	0.90	1.20	1.50	1.80	2.10	2.41	2.95
0.47	0.17	0.28	0.40	0.58	0.69	0.86	1.15	1.44	1.72	2.01	2.31	2.82
0.48	0.17	0.27	0.39	0.55	0.66	0.82	1.10	1.38	1.65	1.93	2.21	2.71
0.49	0.16	0.26	0.37	0.53	0.64	0.79	1.06	1.33	1.59	1.85	2.12	2.60
0.50	0.15	0.25	0.36	0.51	0.61	0.76	1.01	1.27	1.52	1.78	2.04	2.50
0.51	0.15	0.24	0.34	0.49	0.59	0.73	0.98	1.22	1.46	1.71	1.96	2.40
0.52	0.14	0.23	0.33	0.47	0.57	0.70	0.94	1.18	1.41	1.65	1.88	2.31
0.53	0.14	0.22	0.32	0.45	0.54	0.67	0.91	1.13	1.35	1.59	1.81	2.22
0.54	0.13	0.22	0.31	0.44	0.52	0.65	0.87	1.09	1.30	1.53	1.75	2.14
0.55	0.13	0.21	0.29	0.42	0.51	0.63	0.84	1.05	1.26	1.47	1.68	2.06
0.56	0.12	0.20	0.28	0.41	0.49	0.60	0.81	1.02	1.21	1.42	1.62	1.99
0.57	0.12	0.19	0.27	0.39	0.47	0.58	0.78	0.98	1.17	1.37	1.57	1.92
0.58	0.11	0.19	0.27	0.38	0.45	0.56	0.76	0.95	1.13	1.32	1.51	1.85
0.59	0.11	0.18	0.26	0.37	0.44	0.54	0.73	0.91	1.09	1.28	1.46	1.79
0.60	0.11	0.18	0.25	0.35	0.42	0.53	0.71	0.88	1.06	1.24	1.41	1.73

Tolerance of ohm/m: ±5%
Round wire: range from 0.04mm (0.0016″) to 12mm (0.4724″)
Ribbon: range from 0.05mm (0.002″) to 6mm (0.2362″), Max ratio width : thickness = 10:1
