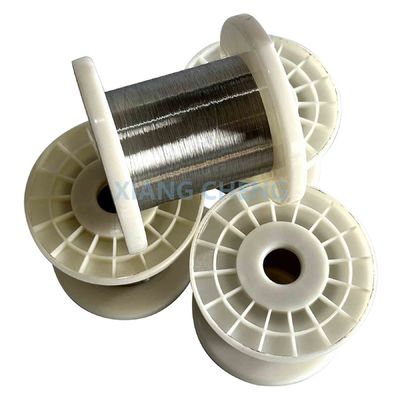

CuNi23 NC030 High-Strength And Conductivity Alloy For Heat Exchangers In Engineering

MOQ:	5kg
Standard Packaging:	Packed with waterproof paper or weave bag, into pallets or wooden case. Special packaging requirements can also be accommodated.
Delivery Period:	3 days
Payment Method:	T/T, D/P
Supply Capacity:	30 Tons per day

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Senphus

Certification

ISO9001

Model Number

CuNi23/NC030

Place Of Origin:

Jiangsu, China

Type:

Nickel Wire

Application:

Heating,household Electrical Application

Color:

Silvery White/bright Or Oxidized

Product Name:

CuNi23 NC030 Copper Nickel Wire

Resistivity:

0.30 ±5%

Melting Temperature In ℃:

Min.tensile Strength In N/mm2:

Elongation:

Density:

Highlight:

Conductivity CuNi23 Alloy

Heat Exchangers CuNi23 Alloy

High Strength CuNi23 Alloy

Product Description

CuNi23 NC030 High-Strength and Conductivity Alloy for Heat Exchangers in Engineering

CuNi23 is a copper-nickel alloy composed of 77% copper and 23% nickel, offering a combination of excellent corrosion resistance, mechanical strength, and thermal stability. It is particularly effective in marine environments, where it resists saltwater corrosion, making it ideal for applications in shipbuilding, offshore equipment, and seawater cooling systems.

This alloy also provides good electrical conductivity and is non-magnetic, making it suitable for use in electrical contacts, resistors, and electronic components where magnetic interference is a concern. CuNi23 maintains high tensile strength and is resistant to erosion and cavitation, making it useful for marine propulsion systems, heat exchangers, and piping systems exposed to harsh conditions.

With its ability to be easily fabricated, welded, and formed, CuNi23 is versatile for applications requiring complex shapes or high-performance components. It also performs well under high temperatures, making it suitable for use in aerospace and automotive industries.

In summary, CuNi23 combines corrosion resistance, strength, and formability, making it an ideal choice for demanding industrial, marine, and electrical applications.

Chemical Composition Wt.%	%	Ni	Cu	Mn
	Min
	Max	23	Rest	0.5

Main physical properties:

Max continuous operating temperature ℃	300
Resistance temperature coefficient x10^-5/℃(20℃-600℃)	<16
Thermovoltage to copper at 20℃ in μV/K	-34
Thermal expansion coefficient×10^-6/K(20℃-400℃)	17.5
Thermal conductance at 20℃ W/mK	33
Specific heat capacity at 20℃ J/gK	0.38

Some key features of CuNi23 include:

1. Outstanding Corrosion Resistance

CuNi23 excels in corrosive environments, particularly in saltwater and marine applications. Its ability to withstand corrosion and biofouling makes it ideal for use in seawater cooling systems, shipbuilding, and offshore structures.

2. High Strength and Durability

This alloy offers high tensile strength and good mechanical properties, ensuring its durability under mechanical stress and in harsh operating conditions. It maintains its performance in both high-temperature and cryogenic applications.

3. Resistance to Galvanic Corrosion

CuNi23 is highly resistant to galvanic corrosion, making it suitable for use in marine environments where different metals are in contact, preventing degradation from electrical currents.

4. Good Thermal Conductivity

While not as conductive as pure copper, CuNi23 still offers adequate thermal conductivity, making it useful in heat exchangers, cooling systems, and thermal management applications.

5. Non-Magnetic

CuNi23 is non-magnetic, which is beneficial for electronic devices and applications where magnetic interference needs to be avoided, such as in electrical contacts and marine instrumentation.

6. Excellent Erosion and Cavitation Resistance

The alloy's resistance to erosion and cavitation makes it ideal for marine hardware such as propellers, pumps, and valves that are exposed to turbulent water flow.

7. Formability and Workability

CuNi23 is ductile and malleable, meaning it can be easily fabricated, welded, and machined into a wide range of shapes and sizes, including pipes, tubes, and fittings.

8. Electrical Conductivity

While not as conductive as pure copper, CuNi23 retains adequate electrical conductivity for use in electrical contacts, resistor components, and electronic devices where corrosion resistance is more critical than maximum conductivity.

9. Resistant to Oxidation

The alloy exhibits good resistance to oxidation at elevated temperatures, making it suitable for use in high-temperature applications such as in power plants and industrial systems.

Applications:

Marine Applications: Seawater cooling systems, shipbuilding, offshore structures, propellers, and marine pumps.
Industrial: Heat exchangers, piping systems, valves, and cooling systems.
Electrical: Electrical contacts, resistors, connector pins, and electrical components.
Aerospace & Automotive: High-temperature components, exhaust systems, and gas turbines.

Main technical data

Type		CuNi1 NC003	CuNi2 NC005	CuNi4 NC007	CuNi6 NC010	CuNi8 NC012	CuMn3 NC012	CuNi10 NC015	CuNi14 NC020	CuNi19 NC025	CuNi23 NC030	CuNi30 NC035	CuNi34 NC040	CuNi44 NC050
Composition(%)	Cu	Rest	Rest	Rest	Rest	Rest	Rest	Rest	Rest	Rest	Rest	Rest	Rest	Rest
	Mn	/	/	/	/	/	3	/	0.3	0.5	0.5	1.0	1.0	1.0
	Ni	1	2	4	6	8		10	14.2	19	23	30	34	44
Max.continuous operating temperature(℃)		200	200·	200	220	250	200	250	300	300	300	350	350	400
Resistivity at 20℃(μ m)		0.03 ±10%	0.05 ±10%	0.07 ±10%	0.10 ±10%	0.12 ±10%	0.12 ±10%	0.15 ±10%	0.20 ±5%	0.25 ±5%	0.30 ±5%	0.35 ±5%	0.40 ±5%	0.49 ±5%
Resisitance-temperature coefficient 20-600℃ (×10-5/℃)		＜ 100	＜ 120	＜ 50	＜ 60	＜ 57	＜ 38	＜ 50	＜ 38	＜ 25	＜ 16	＜ 10	＜ -0	＜ -6
Thermovoltage to copper at 20℃ in (μV/K)		-8	-12	-12	-18	-22	1	-25	-28	-32	-34	-37	-39	-43
Mean coefficient of linear thermal expansion, in (10^-6/K) , at a temperature between 20 ℃ and 400 ℃		17.5	17.5	17.5	17.5	17.5	18	17.5	17.5	17.5	17.5	17.0	16.0	15.0
Thermal conductance at 20℃ (W/mK)		145	130	130	92	75	84	59	48	38	33	27	25	23
Specific heat capacity at 20℃ in (20℃ J/gK)		0.38	0.38	0.38	0.38	0.38	0.39	0.38	0.38	0.38	0.38	0.39	0.40	0.41
Density at 20 ℃(g/cm3)		8.9	8.9	8.9	8.9	8.9	8.8	8.9	8.9	8.9	8.9	8.9	8.9	8.9
Melting temperature in (℃)		1085	1090	1090	1095	1097	1050	1100	1115	1135	1150	1170	1180	1280
Min.tensile strength in (N/mm²⁾		210	220	220	250	270	290	290	310	340	350	400	400	420
Elongation(%)		25	25	25	25	25	25	25	25	25	25	25	25	25

Technical data table

Diameter(mm)	NC003 CuNi1	NC005 CuNi2	NC007 CuNi4	NC010 CuNi6	NC012 CuNi8	NC015 CuNi10	NC020 CuNi14	NC025 CuNi19	NC030 CuNi23	NC035 CuNi30	NC040 CuNi34	NC050 CuNi44
Diameter(mm)	NC003 CuNi1	NC005 CuNi2	NC007 CuNi4	NC010 CuNi6	NC012 CuNi8	NC015 CuNi10	NC020 CuNi14	NC025 CuNi19	NC030 CuNi23	NC035 CuNi30	NC040 CuNi34	NC050 CuNi44
0.10	3.82	6.36	8.91	12.73	15.28	19.09	25.46	31.83	38.19	44.56	50.93	62.39
0.11	3.16	5.26	7.37	10.52	12.63	15.78	21.04	26.30	31.56	36.82	42.09	51.56
0.12	2.65	4.42	6.19	8.84	10.61	13.26	17.68	22.10	26.52	30.94	35.37	43.33
0.13	2.26	3.76	5.27	7.53	9.04	11.30	15.07	18.83	22.60	26.36	30.14	36.92
0.14	1.95	3.24	4.55	6.49	7.80	9.74	12.99	16.24	19.48	22.73	25.98	31.83
0.15	1.70	2.82	3.96	5.65	6.79	8.48	11.31	14.14	16.97	19.80	22.64	27.73
0.16	1.49	2.48	3.48	4.97	5.97	7.46	9.95	12.43	14.92	17.40	19.89	24.37
0.17	1.32	2.20	3.08	4.40	5.29	6.60	8.81	11.01	13.21	15.41	17.62	21.59
0.18	1.18	1.96	2.75	3.92	4.72	5.89	7.86	9.82	11.78	13.75	15.72	19.26
0.19	1.06	1.76	2.47	3.52	4.23	5.29	7.05	8.81	10.58	12.34	14.11	17.28
0.20	0.95	1.59	2.23	3.18	3.82	4.77	6.36	7.95	9.54	11.14	12.73	15.60
0.21	0.87	1.44	2.02	2.88	3.46	4.33	5.77	7.21	8.66	10.10	11.55	14.15
0.22	0.79	1.31	1.84	2.63	3.16	3.94	5.26	6.57	7.89	9.20	10.52	12.89
0.23	0.72	1.20	1.68	2.40	2.89	3.61	4.81	6.01	7.22	8.42	9.63	11.79
0.24	0.66	1.10	1.55	2.21	2.65	3.31	4.42	5.52	6.63	7.73	8.84	10.83
0.25	0.61	1.01	1.43	2.03	2.44	3.05	4.07	5.09	6.11	7.13	8.15	9.98
0.26	0.57	0.94	1.32	1.88	2.26	2.82	3.77	4.70	5.65	6.59	7.53	9.23
0.27	0.52	0.87	1.22	1.74	2.10	2.61	3.49	4.36	5.23	6.11	6.99	8.56
0.28	0.49	0.81	1.14	1.62	1.95	2.43	3.25	4.06	4.87	5.68	6.50	7.96
0.29	0.45	0.75	1.06	1.51	1.82	2.27	3.03	3.78	4.54	5.29	6.06	7.42
0.30	0.42	0.70	0.99	1.41	1.70	2.12	2.83	3.53	4.24	4.95	5.66	6.93
0.31	0.40	0.66	0.93	1.32	1.59	1.98	2.65	3.31	3.97	4.63	5.30	6.49
0.32	0.37	0.62	0.87	1.24	1.49	1.86	2.49	3.11	3.73	4.35	4.97	6.09
0.33	0.35	0.58	0.82	1.17	1.40	1.75	2.34	2.92	3.51	4.09	4.68	5.73
0.34	0.33	0.55	0.77	1.10	1.32	1.65	2.20	2.75	3.30	3.85	4.41	5.40
0.35	0.31	0.51	0.73	1.03	1.25	1.55	2.08	2.60	3.11	3.63	4.16	5.09
0.36	0.29	0.49	0.69	0.98	1.18	1.47	1.96	2.46	2.94	3.43	3.93	4.81
0.37	0.28	0.46	0.65	0.93	1.12	1.39	1.86	2.33	2.79	3.25	3.72	4.56
0.38	0.26	0.44	0.62	0.88	1.06	1.32	1.76	2.20	2.64	3.08	3.53	4.32
0.40	0.24	0.39	0.56	0.79	0.95	1.19	1.59	1.99	2.38	2.78	3.18	3.90
0.41	0.23	0.37	0.53	0.76	0.91	1.13	1.51	1.89	2.27	2.65	3.03	3.71
0.42	0.22	0.36	0.51	0.72	0.87	1.08	1.44	1.80	2.16	2.52	2.89	3.54
0.43	0.21	0.34	0.48	0.69	0.83	1.03	1.38	1.72	2.06	2.41	2.75	3.37
0.44	0.20	0.32	0.46	0.66	0.79	0.98	1.31	1.64	1.97	2.30	2.63	3.22
0.45	0.19	0.31	0.44	0.63	0.75	0.94	1.26	1.57	1.88	2.20	2.52	3.08
0.46	0.18	0.30	0.42	0.60	0.72	0.90	1.20	1.50	1.80	2.10	2.41	2.95
0.47	0.17	0.28	0.40	0.58	0.69	0.86	1.15	1.44	1.72	2.01	2.31	2.82
0.48	0.17	0.27	0.39	0.55	0.66	0.82	1.10	1.38	1.65	1.93	2.21	2.71
0.49	0.16	0.26	0.37	0.53	0.64	0.79	1.06	1.33	1.59	1.85	2.12	2.60
0.50	0.15	0.25	0.36	0.51	0.61	0.76	1.01	1.27	1.52	1.78	2.04	2.50
0.51	0.15	0.24	0.34	0.49	0.59	0.73	0.98	1.22	1.46	1.71	1.96	2.40
0.52	0.14	0.23	0.33	0.47	0.57	0.70	0.94	1.18	1.41	1.65	1.88	2.31
0.53	0.14	0.22	0.32	0.45	0.54	0.67	0.91	1.13	1.35	1.59	1.81	2.22
0.54	0.13	0.22	0.31	0.44	0.52	0.65	0.87	1.09	1.30	1.53	1.75	2.14
0.55	0.13	0.21	0.29	0.42	0.51	0.63	0.84	1.05	1.26	1.47	1.68	2.06
0.56	0.12	0.20	0.28	0.41	0.49	0.60	0.81	1.02	1.21	1.42	1.62	1.99
0.57	0.12	0.19	0.27	0.39	0.47	0.58	0.78	0.98	1.17	1.37	1.57	1.92
0.58	0.11	0.19	0.27	0.38	0.45	0.56	0.76	0.95	1.13	1.32	1.51	1.85
0.59	0.11	0.18	0.26	0.37	0.44	0.54	0.73	0.91	1.09	1.28	1.46	1.79
0.60	0.11	0.18	0.25	0.35	0.42	0.53	0.71	0.88	1.06	1.24	1.41	1.73

Tolerance of ohm/m: ±5%
Round wire: range from 0.04mm (0.0016″) to 12mm (0.4724″)
Ribbon: range from 0.05mm (0.002″) to 6mm (0.2362″), Max ratio width : thickness = 10:1
