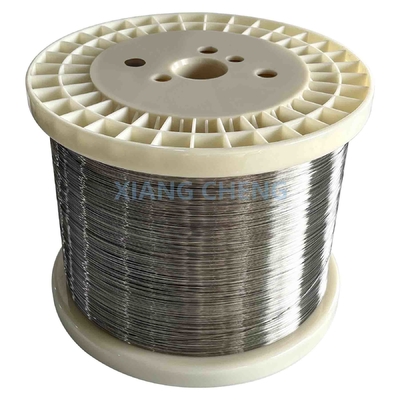

Versatility CuNi44/NC050/2.0842/C72150 CuNi Alloy Wire For Industrial Applications

Products

Heating Cable

Mr. Changfeng Ye

toretto.ye@senphus.com

-0510-86650038

Contact Now

Versatility CuNi44/NC050/2.0842/C72150 CuNi Alloy Wire For Industrial Applications

MOQ:	5kg
Standard Packaging:	Packed with waterproof paper or weave bag, into pallets or wooden case. Special packaging requirements can also be accommodated.
Delivery Period:	3 days
Payment Method:	T/T, D/P
Supply Capacity:	30 Tons per day

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Senphus

Model Number

CuNi44/NC050/2.0842/C72150

Place Of Origin:

Jiangsu, China

Type:

Nickel Wire

Application:

Heating,household Electrical Application

Color:

Silvery White/bright Or Oxidized

Certification:

ISO9001

Resistivity:

0.49 ±5%

Melting Temperature In ℃:

Min.tensile Strength In N/mm2:

Elongation:

Density:

Highlight:

CuNi44 CuNi Alloy Wire

Versatility CuNi Alloy Wire

NC050 CuNi Alloy Wire

Product Description

Versatility CuNi44/NC050/2.0842/C72150 CuNi Alloy Wire For Industrial Applications

CuNi44 is a copper-nickel alloy composed of approximately 56% copper and 44% nickel. It is known for its excellent resistance to corrosion, particularly in seawater and harsh chemical environments, making it suitable for marine and industrial applications. CuNi44 offers high strength and durability, along with good thermal and electrical conductivity. The alloy is also highly resistant to pitting, crevice, and stress corrosion cracking, ensuring longevity in corrosive environments.

CuNi44 is commonly used in the manufacturing of components for marine applications such as seawater piping, heat exchangers, and condenser tubes. Additionally, it is used in chemical processing equipment, desalination plants, and industrial cooling systems. The alloy is also valued for its ability to withstand high temperatures and maintain structural integrity under stress, making it suitable for power generation and heat exchanger applications. CuNi44’s combination of corrosion resistance, mechanical strength, and fabricability makes it a versatile choice for critical industrial and marine environments.

Chemical Composition Wt.%	%	Ni	Cu	Mn
	Min
	Max	44	Rest	1

JIS

ASTM

ISO

DIN EN/DIN

NF EN/NF

GOST

CuNi44

NC050

BMn43-0.5

T71670

C7215

C72150

56Cu-44Ni

C72150

CuNi44Mn1

C72150

CuNi44Mn1

C72150

2.0842

CuNi44Mn1

C72150

МНМц43-0.5

Main physical properties:

Max continuous operating temperature ℃	400
Resistance temperature coefficient x 10^-5/℃(20℃-600℃)	<-6
Thermovoltage to copper at 20℃ in μV/K	-43
Thermal expansion coefficient ×10^-6/K(20℃-400℃)	15.0
Thermal conductance at 20℃ W/mK	23
Specific heat capacity at 20℃ J/gK	0.41

Some key features of CuNi44 include:

Chemical Composition: CuNi44 is a copper-nickel alloy with approximately 44% nickel and the remainder being copper, with small amounts of manganese (Mn) and iron (Fe)
Thermoelectric EMF: The thermoelectric emf of CuNi44 is high compared to copper, making it useful in thermocouple applications
Corrosion Resistance: CuNi44 is resistant to scaling and corrosion up to 600°C in oxygen-containing and oxidizing sulphurous gases and carburisation, among others
Mechanical Properties: CuNi44 exhibits good mechanical properties at room temperature, with tensile strength ranging from 420 to 71 ksi and elongation from 18% to 25% depending on the material dimensions
Oxidation Resistance: The material is resistant to oxidation, which is beneficial for applications involving high temperatures
Solderability: CuNi44 has good solderability, which is an advantage in electrical and electronic applications

Applications:

Precision Measurement Testers:

CuNi44 is particularly useful in precision measurement testers due to its very low temperature coefficient, which makes it ideal for applications where temperature stability is crucial.

Thermocouples:

The alloy is used in the manufacturing of thermocouples because it develops a high electromotive force (EMF) when paired with other metals, such as copper, iron, and Ni-Cr, to form Type T, Type J, and Type E thermocouples, respectively.

Electrical Resistance Applications:

CuNi44 is employed in wire-wound precision resistors that can operate up to 400°C (750°F) due to its high electrical resistivity and very low temperature coefficient of resistance (TCR).

Heating Elements:

The alloy is used in heating wires and cables, as well as in heating mats, where protection from corrosion damage is necessary.

Electrical Measuring Instruments:

CuNi44 is utilized in electrical measuring instruments and low-temperature heating elements with application temperatures up to 600°C.

Industrial Rheostats:

The alloy finds use in industrial rheostats and electric motor starter resistances, volume control devices, and other similar applications where precise control of electrical current is required.

Electrical Contacts:

CuNi44 is used in electrical contacts due to its good solderability and resistance to oxidation.

Aerospace and Automotive Industries:

The alloy is also used in measuring instruments, aircraft, and automobile construction where its corrosion resistance and mechanical properties are advantageous.

These applications highlight the versatility of CuNi44 in various industries, particularly those that require materials with specific electrical properties and resistance to corrosive environments.

Technical data table

Diameter(mm)	NC003 CuNi1	NC005 CuNi2	NC007 CuNi4	NC010 CuNi6	NC012 CuNi8	NC015 CuNi10	NC020 CuNi14	NC025 CuNi19	NC030 CuNi23	NC035 CuNi30	NC040 CuNi34	NC050 CuNi44
Diameter(mm)	NC003 CuNi1	NC005 CuNi2	NC007 CuNi4	NC010 CuNi6	NC012 CuNi8	NC015 CuNi10	NC020 CuNi14	NC025 CuNi19	NC030 CuNi23	NC035 CuNi30	NC040 CuNi34	NC050 CuNi44
0.10	3.82	6.36	8.91	12.73	15.28	19.09	25.46	31.83	38.19	44.56	50.93	62.39
0.11	3.16	5.26	7.37	10.52	12.63	15.78	21.04	26.30	31.56	36.82	42.09	51.56
0.12	2.65	4.42	6.19	8.84	10.61	13.26	17.68	22.10	26.52	30.94	35.37	43.33
0.13	2.26	3.76	5.27	7.53	9.04	11.30	15.07	18.83	22.60	26.36	30.14	36.92
0.14	1.95	3.24	4.55	6.49	7.80	9.74	12.99	16.24	19.48	22.73	25.98	31.83
0.15	1.70	2.82	3.96	5.65	6.79	8.48	11.31	14.14	16.97	19.80	22.64	27.73
0.16	1.49	2.48	3.48	4.97	5.97	7.46	9.95	12.43	14.92	17.40	19.89	24.37
0.17	1.32	2.20	3.08	4.40	5.29	6.60	8.81	11.01	13.21	15.41	17.62	21.59
0.18	1.18	1.96	2.75	3.92	4.72	5.89	7.86	9.82	11.78	13.75	15.72	19.26
0.19	1.06	1.76	2.47	3.52	4.23	5.29	7.05	8.81	10.58	12.34	14.11	17.28
0.20	0.95	1.59	2.23	3.18	3.82	4.77	6.36	7.95	9.54	11.14	12.73	15.60
0.21	0.87	1.44	2.02	2.88	3.46	4.33	5.77	7.21	8.66	10.10	11.55	14.15
0.22	0.79	1.31	1.84	2.63	3.16	3.94	5.26	6.57	7.89	9.20	10.52	12.89
0.23	0.72	1.20	1.68	2.40	2.89	3.61	4.81	6.01	7.22	8.42	9.63	11.79
0.24	0.66	1.10	1.55	2.21	2.65	3.31	4.42	5.52	6.63	7.73	8.84	10.83
0.25	0.61	1.01	1.43	2.03	2.44	3.05	4.07	5.09	6.11	7.13	8.15	9.98
0.26	0.57	0.94	1.32	1.88	2.26	2.82	3.77	4.70	5.65	6.59	7.53	9.23
0.27	0.52	0.87	1.22	1.74	2.10	2.61	3.49	4.36	5.23	6.11	6.99	8.56
0.28	0.49	0.81	1.14	1.62	1.95	2.43	3.25	4.06	4.87	5.68	6.50	7.96
0.29	0.45	0.75	1.06	1.51	1.82	2.27	3.03	3.78	4.54	5.29	6.06	7.42
0.30	0.42	0.70	0.99	1.41	1.70	2.12	2.83	3.53	4.24	4.95	5.66	6.93
0.31	0.40	0.66	0.93	1.32	1.59	1.98	2.65	3.31	3.97	4.63	5.30	6.49
0.32	0.37	0.62	0.87	1.24	1.49	1.86	2.49	3.11	3.73	4.35	4.97	6.09
0.33	0.35	0.58	0.82	1.17	1.40	1.75	2.34	2.92	3.51	4.09	4.68	5.73
0.34	0.33	0.55	0.77	1.10	1.32	1.65	2.20	2.75	3.30	3.85	4.41	5.40
0.35	0.31	0.51	0.73	1.03	1.25	1.55	2.08	2.60	3.11	3.63	4.16	5.09
0.36	0.29	0.49	0.69	0.98	1.18	1.47	1.96	2.46	2.94	3.43	3.93	4.81
0.37	0.28	0.46	0.65	0.93	1.12	1.39	1.86	2.33	2.79	3.25	3.72	4.56
0.38	0.26	0.44	0.62	0.88	1.06	1.32	1.76	2.20	2.64	3.08	3.53	4.32
0.40	0.24	0.39	0.56	0.79	0.95	1.19	1.59	1.99	2.38	2.78	3.18	3.90
0.41	0.23	0.37	0.53	0.76	0.91	1.13	1.51	1.89	2.27	2.65	3.03	3.71
0.42	0.22	0.36	0.51	0.72	0.87	1.08	1.44	1.80	2.16	2.52	2.89	3.54
0.43	0.21	0.34	0.48	0.69	0.83	1.03	1.38	1.72	2.06	2.41	2.75	3.37
0.44	0.20	0.32	0.46	0.66	0.79	0.98	1.31	1.64	1.97	2.30	2.63	3.22
0.45	0.19	0.31	0.44	0.63	0.75	0.94	1.26	1.57	1.88	2.20	2.52	3.08
0.46	0.18	0.30	0.42	0.60	0.72	0.90	1.20	1.50	1.80	2.10	2.41	2.95
0.47	0.17	0.28	0.40	0.58	0.69	0.86	1.15	1.44	1.72	2.01	2.31	2.82
0.48	0.17	0.27	0.39	0.55	0.66	0.82	1.10	1.38	1.65	1.93	2.21	2.71
0.49	0.16	0.26	0.37	0.53	0.64	0.79	1.06	1.33	1.59	1.85	2.12	2.60
0.50	0.15	0.25	0.36	0.51	0.61	0.76	1.01	1.27	1.52	1.78	2.04	2.50
0.51	0.15	0.24	0.34	0.49	0.59	0.73	0.98	1.22	1.46	1.71	1.96	2.40
0.52	0.14	0.23	0.33	0.47	0.57	0.70	0.94	1.18	1.41	1.65	1.88	2.31
0.53	0.14	0.22	0.32	0.45	0.54	0.67	0.91	1.13	1.35	1.59	1.81	2.22
0.54	0.13	0.22	0.31	0.44	0.52	0.65	0.87	1.09	1.30	1.53	1.75	2.14
0.55	0.13	0.21	0.29	0.42	0.51	0.63	0.84	1.05	1.26	1.47	1.68	2.06
0.56	0.12	0.20	0.28	0.41	0.49	0.60	0.81	1.02	1.21	1.42	1.62	1.99
0.57	0.12	0.19	0.27	0.39	0.47	0.58	0.78	0.98	1.17	1.37	1.57	1.92
0.58	0.11	0.19	0.27	0.38	0.45	0.56	0.76	0.95	1.13	1.32	1.51	1.85
0.59	0.11	0.18	0.26	0.37	0.44	0.54	0.73	0.91	1.09	1.28	1.46	1.79
0.60	0.11	0.18	0.25	0.35	0.42	0.53	0.71	0.88	1.06	1.24	1.41	1.73

Tolerance of ohm/m: ±5%
Round wire: range from 0.04mm (0.0016″) to 12mm (0.4724″)
Ribbon: range from 0.05mm (0.002″) to 6mm (0.2362″), Max ratio width : thickness = 10:1

Versatility CuNi44/NC050/2.0842/C72150 CuNi Alloy Wire For Industrial Applications 0
