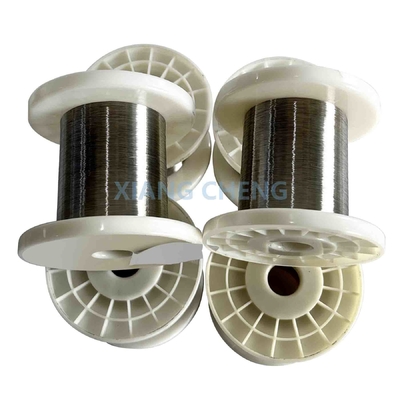

CuNi23 NC030 Cuni Wire In Heating Household Electrical Application

MOQ:	5kg
Standard Packaging:	Packed with waterproof paper or weave bag, into pallets or wooden case. Special packaging requirements can also be accommodated.
Delivery Period:	3 days
Payment Method:	T/T, D/P
Supply Capacity:	30 Tons per day

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Senphus

Certification

ISO9001

Model Number

CuNi23/NC030

Place Of Origin:

Jiangsu, China

Type:

Nickel Wire

Application:

Heating,household Electrical Application

Color:

Silvery White/bright Or Oxidized

Product Name:

CuNi23 NC030 Copper Nickel Wire

Resistivity:

0.30 ±5%

Melting Temperature In ℃:

Min.tensile Strength In N/mm2:

Elongation:

Density:

Highlight:

NC030 Cuni Wire

CuNi23 Cuni Wire

Heating Household Electrical Application Cuni Wire

Product Description

CuNi23 NC030 Cuni Wire In Heating Household Electrical Application

CuNi23 (also known as Copper-Nickle 23 or CuNi 23) is a copper-nickel alloy that typically consists of 77% copper and 23% nickel, along with trace amounts of other elements like iron and manganese for enhanced performance. This alloy is often used in applications requiring excellent corrosion resistance, strength, and thermal stability.

CuNi23 is a high-performance copper-nickel alloy with excellent corrosion resistance, good mechanical strength, and a range of thermal and electrical properties that make it ideal for demanding environments. Whether used in marine applications, heat exchangers, or electrical contacts, CuNi23 offers long-term durability and performance in conditions that would degrade other materials. Its non-magnetic properties, formability, and resistance to both erosion and oxidation further enhance its versatility in industrial, marine, and aerospace applications.

Chemical Composition Wt.%	%	Ni	Cu	Mn
	Min
	Max	23	Rest	0.5

Main physical properties:

Max continuous operating temperature ℃	300
Resistance temperature coefficient x10^-5/℃(20℃-600℃)	<16
Thermovoltage to copper at 20℃ in μV/K	-34
Thermal expansion coefficient×10^-6/K(20℃-400℃)	17.5
Thermal conductance at 20℃ W/mK	33
Specific heat capacity at 20℃ J/gK	0.38

Some key features of CuNi23 include:

1. Excellent Corrosion Resistance

CuNi23 offers outstanding resistance to corrosion, particularly in marine environments and saltwater. This makes it ideal for use in seawater systems, shipbuilding, offshore structures, and other applications exposed to harsh, corrosive environments.
Its corrosion resistance is especially important for applications like heat exchangers, pipes, and marine hardware.

2. Good Strength and Durability

The alloy exhibits high tensile strength, allowing it to withstand mechanical stress and maintain structural integrity even in demanding environments.
CuNi23 retains its mechanical properties over a wide range of temperatures, making it suitable for both high-temperature and cryogenic applications.

3. Excellent Resistance to Galvanic Corrosion

CuNi23 is known for its ability to resist galvanic corrosion, which is a critical factor in applications where the alloy is exposed to different metals, such as in electrical systems or marine environments where dissimilar metals are in contact.

4. Good Thermal Conductivity

This copper-nickel alloy has relatively good thermal conductivity, which makes it useful in heat exchangers, radiators, and other thermal management systems.
However, it is not as conductive as pure copper, so it balances conductivity with corrosion resistance and strength.

5. Resistant to Oxidation

CuNi23 exhibits good resistance to oxidation at higher temperatures, which is advantageous in environments where the material may be exposed to high-temperature oxidation, such as in power plants and high-temperature industrial applications.

6. Excellent Workability

CuNi23 is a ductile and malleable material, meaning it can be easily machined, welded, forged, and formed into different shapes and configurations. This makes it suitable for manufacturing components like pipes, tubes, valves, and fittings.

7. Non-Magnetic Properties

CuNi23 is non-magnetic, which is a critical feature in certain applications where magnetic interference needs to be avoided. This is particularly useful in electronic equipment and marine instrumentation where magnetic fields could affect performance.

8. Resistance to Erosion and Cavitation

The alloy is highly resistant to erosion and cavitation, making it well-suited for marine engineering applications such as propellers, pumps, and valves, which are often exposed to flowing seawater.

9. Good Formability and Fabrication

CuNi23 has good formability, allowing it to be drawn into thin wires or flattened into sheets. This makes it suitable for applications requiring fine wires or thin films, such as in resistance heating elements or electrical components.

10. Electrical Conductivity

While not as conductive as pure copper, CuNi23 has adequate electrical conductivity, making it useful in electrical components where corrosion resistance is more important than maximum conductivity, such as connector pins, resistor wires, or switching contacts.

Applications:

Marine Applications: Used in shipbuilding, offshore oil rigs, and marine equipment for its exceptional resistance to saltwater corrosion.
Heat Exchangers: Due to its corrosion and thermal properties, CuNi23 is often used in heat exchangers in power plants and industrial equipment.
Electrical Contacts: Due to its resistance to corrosion and good electrical properties, it is used in electrical connectors, switching devices, and resistors.
Plumbing and Piping: CuNi23 is used for piping systems, particularly in environments like seawater cooling systems, freshwater systems, and brine systems.
Aerospace and Automotive: It is used in components exposed to high temperatures and corrosive environments, such as in gas turbines, heat shields, and exhaust systems.

Main technical data

Type		CuNi1 NC003	CuNi2 NC005	CuNi4 NC007	CuNi6 NC010	CuNi8 NC012	CuMn3 NC012	CuNi10 NC015	CuNi14 NC020	CuNi19 NC025	CuNi23 NC030	CuNi30 NC035	CuNi34 NC040	CuNi44 NC050
Composition(%)	Cu	Rest	Rest	Rest	Rest	Rest	Rest	Rest	Rest	Rest	Rest	Rest	Rest	Rest
	Mn	/	/	/	/	/	3	/	0.3	0.5	0.5	1.0	1.0	1.0
	Ni	1	2	4	6	8		10	14.2	19	23	30	34	44
Max.continuous operating temperature(℃)		200	200·	200	220	250	200	250	300	300	300	350	350	400
Resistivity at 20℃(μ m)		0.03 ±10%	0.05 ±10%	0.07 ±10%	0.10 ±10%	0.12 ±10%	0.12 ±10%	0.15 ±10%	0.20 ±5%	0.25 ±5%	0.30 ±5%	0.35 ±5%	0.40 ±5%	0.49 ±5%
Resisitance-temperature coefficient 20-600℃ (×10-5/℃)		＜ 100	＜ 120	＜ 50	＜ 60	＜ 57	＜ 38	＜ 50	＜ 38	＜ 25	＜ 16	＜ 10	＜ -0	＜ -6
Thermovoltage to copper at 20℃ in (μV/K)		-8	-12	-12	-18	-22	1	-25	-28	-32	-34	-37	-39	-43
Mean coefficient of linear thermal expansion, in (10^-6/K) , at a temperature between 20 ℃ and 400 ℃		17.5	17.5	17.5	17.5	17.5	18	17.5	17.5	17.5	17.5	17.0	16.0	15.0
Thermal conductance at 20℃ (W/mK)		145	130	130	92	75	84	59	48	38	33	27	25	23
Specific heat capacity at 20℃ in (20℃ J/gK)		0.38	0.38	0.38	0.38	0.38	0.39	0.38	0.38	0.38	0.38	0.39	0.40	0.41
Density at 20 ℃(g/cm3)		8.9	8.9	8.9	8.9	8.9	8.8	8.9	8.9	8.9	8.9	8.9	8.9	8.9
Melting temperature in (℃)		1085	1090	1090	1095	1097	1050	1100	1115	1135	1150	1170	1180	1280
Min.tensile strength in (N/mm²⁾		210	220	220	250	270	290	290	310	340	350	400	400	420
Elongation(%)		25	25	25	25	25	25	25	25	25	25	25	25	25

Technical data table

Diameter(mm)	NC003 CuNi1	NC005 CuNi2	NC007 CuNi4	NC010 CuNi6	NC012 CuNi8	NC015 CuNi10	NC020 CuNi14	NC025 CuNi19	NC030 CuNi23	NC035 CuNi30	NC040 CuNi34	NC050 CuNi44
Diameter(mm)	NC003 CuNi1	NC005 CuNi2	NC007 CuNi4	NC010 CuNi6	NC012 CuNi8	NC015 CuNi10	NC020 CuNi14	NC025 CuNi19	NC030 CuNi23	NC035 CuNi30	NC040 CuNi34	NC050 CuNi44
0.10	3.82	6.36	8.91	12.73	15.28	19.09	25.46	31.83	38.19	44.56	50.93	62.39
0.11	3.16	5.26	7.37	10.52	12.63	15.78	21.04	26.30	31.56	36.82	42.09	51.56
0.12	2.65	4.42	6.19	8.84	10.61	13.26	17.68	22.10	26.52	30.94	35.37	43.33
0.13	2.26	3.76	5.27	7.53	9.04	11.30	15.07	18.83	22.60	26.36	30.14	36.92
0.14	1.95	3.24	4.55	6.49	7.80	9.74	12.99	16.24	19.48	22.73	25.98	31.83
0.15	1.70	2.82	3.96	5.65	6.79	8.48	11.31	14.14	16.97	19.80	22.64	27.73
0.16	1.49	2.48	3.48	4.97	5.97	7.46	9.95	12.43	14.92	17.40	19.89	24.37
0.17	1.32	2.20	3.08	4.40	5.29	6.60	8.81	11.01	13.21	15.41	17.62	21.59
0.18	1.18	1.96	2.75	3.92	4.72	5.89	7.86	9.82	11.78	13.75	15.72	19.26
0.19	1.06	1.76	2.47	3.52	4.23	5.29	7.05	8.81	10.58	12.34	14.11	17.28
0.20	0.95	1.59	2.23	3.18	3.82	4.77	6.36	7.95	9.54	11.14	12.73	15.60
0.21	0.87	1.44	2.02	2.88	3.46	4.33	5.77	7.21	8.66	10.10	11.55	14.15
0.22	0.79	1.31	1.84	2.63	3.16	3.94	5.26	6.57	7.89	9.20	10.52	12.89
0.23	0.72	1.20	1.68	2.40	2.89	3.61	4.81	6.01	7.22	8.42	9.63	11.79
0.24	0.66	1.10	1.55	2.21	2.65	3.31	4.42	5.52	6.63	7.73	8.84	10.83
0.25	0.61	1.01	1.43	2.03	2.44	3.05	4.07	5.09	6.11	7.13	8.15	9.98
0.26	0.57	0.94	1.32	1.88	2.26	2.82	3.77	4.70	5.65	6.59	7.53	9.23
0.27	0.52	0.87	1.22	1.74	2.10	2.61	3.49	4.36	5.23	6.11	6.99	8.56
0.28	0.49	0.81	1.14	1.62	1.95	2.43	3.25	4.06	4.87	5.68	6.50	7.96
0.29	0.45	0.75	1.06	1.51	1.82	2.27	3.03	3.78	4.54	5.29	6.06	7.42
0.30	0.42	0.70	0.99	1.41	1.70	2.12	2.83	3.53	4.24	4.95	5.66	6.93
0.31	0.40	0.66	0.93	1.32	1.59	1.98	2.65	3.31	3.97	4.63	5.30	6.49
0.32	0.37	0.62	0.87	1.24	1.49	1.86	2.49	3.11	3.73	4.35	4.97	6.09
0.33	0.35	0.58	0.82	1.17	1.40	1.75	2.34	2.92	3.51	4.09	4.68	5.73
0.34	0.33	0.55	0.77	1.10	1.32	1.65	2.20	2.75	3.30	3.85	4.41	5.40
0.35	0.31	0.51	0.73	1.03	1.25	1.55	2.08	2.60	3.11	3.63	4.16	5.09
0.36	0.29	0.49	0.69	0.98	1.18	1.47	1.96	2.46	2.94	3.43	3.93	4.81
0.37	0.28	0.46	0.65	0.93	1.12	1.39	1.86	2.33	2.79	3.25	3.72	4.56
0.38	0.26	0.44	0.62	0.88	1.06	1.32	1.76	2.20	2.64	3.08	3.53	4.32
0.40	0.24	0.39	0.56	0.79	0.95	1.19	1.59	1.99	2.38	2.78	3.18	3.90
0.41	0.23	0.37	0.53	0.76	0.91	1.13	1.51	1.89	2.27	2.65	3.03	3.71
0.42	0.22	0.36	0.51	0.72	0.87	1.08	1.44	1.80	2.16	2.52	2.89	3.54
0.43	0.21	0.34	0.48	0.69	0.83	1.03	1.38	1.72	2.06	2.41	2.75	3.37
0.44	0.20	0.32	0.46	0.66	0.79	0.98	1.31	1.64	1.97	2.30	2.63	3.22
0.45	0.19	0.31	0.44	0.63	0.75	0.94	1.26	1.57	1.88	2.20	2.52	3.08
0.46	0.18	0.30	0.42	0.60	0.72	0.90	1.20	1.50	1.80	2.10	2.41	2.95
0.47	0.17	0.28	0.40	0.58	0.69	0.86	1.15	1.44	1.72	2.01	2.31	2.82
0.48	0.17	0.27	0.39	0.55	0.66	0.82	1.10	1.38	1.65	1.93	2.21	2.71
0.49	0.16	0.26	0.37	0.53	0.64	0.79	1.06	1.33	1.59	1.85	2.12	2.60
0.50	0.15	0.25	0.36	0.51	0.61	0.76	1.01	1.27	1.52	1.78	2.04	2.50
0.51	0.15	0.24	0.34	0.49	0.59	0.73	0.98	1.22	1.46	1.71	1.96	2.40
0.52	0.14	0.23	0.33	0.47	0.57	0.70	0.94	1.18	1.41	1.65	1.88	2.31
0.53	0.14	0.22	0.32	0.45	0.54	0.67	0.91	1.13	1.35	1.59	1.81	2.22
0.54	0.13	0.22	0.31	0.44	0.52	0.65	0.87	1.09	1.30	1.53	1.75	2.14
0.55	0.13	0.21	0.29	0.42	0.51	0.63	0.84	1.05	1.26	1.47	1.68	2.06
0.56	0.12	0.20	0.28	0.41	0.49	0.60	0.81	1.02	1.21	1.42	1.62	1.99
0.57	0.12	0.19	0.27	0.39	0.47	0.58	0.78	0.98	1.17	1.37	1.57	1.92
0.58	0.11	0.19	0.27	0.38	0.45	0.56	0.76	0.95	1.13	1.32	1.51	1.85
0.59	0.11	0.18	0.26	0.37	0.44	0.54	0.73	0.91	1.09	1.28	1.46	1.79
0.60	0.11	0.18	0.25	0.35	0.42	0.53	0.71	0.88	1.06	1.24	1.41	1.73

Tolerance of ohm/m: ±5%
Round wire: range from 0.04mm (0.0016″) to 12mm (0.4724″)
Ribbon: range from 0.05mm (0.002″) to 6mm (0.2362″), Max ratio width : thickness = 10:1
