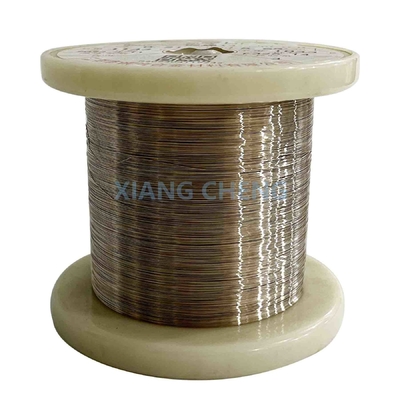

CuNi14 NC020 Versatile Essential Copper Nickel Alloy Wire For Modern Applications

CuNi14 NC020 Versatile Essential Copper Nickel Alloy Wire For Modern Applications

MOQ: 5kg
Standard Packaging: Packed with waterproof paper or weave bag, into pallets or wooden case. Special packaging requirements can also be accommodated.
Delivery Period: 3 days
Payment Method: T/T, D/P
Supply Capacity: 30 Tons per day
Detail Information
Place of Origin
China
Brand Name
Senphus
Model Number
CuNi14/NC020/CuNi14.2
Place Of Origin:
Jiangsu, China
Type:
Nickel Wire
Application:
Heating,household Electrical Application
Color:
Silvery White/bright Or Oxidized
Certification:
ISO9001
Product Name:
CuNi14 NC020 Copper Nickel Wire
Resistivity:
0.20 ±5%
Melting Temperature In ℃:
1115
Min.tensile Strength In N/mm²:
310
Elongation:
25
Density:
8.9
Highlight:

CuNi14 copper nickel alloy wire

,

NC020 copper nickel alloy wire

,

Versatile nickel copper wire

Product Description

CuNi14 NC020 Versatile Essential Copper Nickel Alloy Wire For Modern Applications



CuNi14 is a copper-nickel alloy composed of approximately 14% nickel and 86% copper. This alloy is recognized for its excellent corrosion resistance, particularly in marine and aggressive industrial environments, and its combination of mechanical strength, thermal conductivity, and non-magnetic properties. Its unique composition makes it suitable for applications demanding durability, reliability, and resistance to harsh conditions.



CuNi14 derives its properties from its nickel content, which enhances its corrosion resistance in seawater and acidic environments, while copper contributes to its thermal and electrical conductivity. The alloy exhibits moderate mechanical strength and excellent formability, making it ideal for various industrial uses.



Chemical Composition Wt.

% Ni Mn Cu
MIN.
MAX. 14.2 0.3 Rest





Main physical properties:

Max continuous operating temperature ℃ 300
Resistance temperature coefficient x 10-5/℃(20℃-600℃) <38
Thermovoltage to copper at 20℃ in μV/K -28
Thermal expansion coefficient ×10-6/K(20℃-400℃) 17.5
Thermal conductance at 20℃ W/mK 48
Specific heat capacity at 20℃ J/gK 0.38





Some key features of CuNi14 include:

  • Composition & Alloying Elements

    • Copper & Nickel Basis: Primarily composed of copper and nickel.
    • Minor Additives: Contains trace amounts of other metals for enhanced properties.
  • Mechanical Properties

    • High Strength: Exhibits strong tensile and yield strength.
    • Good Ductility: Easily formed and shaped without breaking.
  • Corrosion Resistance

    • Excellent in Various Media: Highly resistant to corrosion in different environments.
  • Thermal & Electrical Conductivity

    • Moderate Levels: Possesses moderate electrical and thermal conductivity suitable for specific applications.



Applications:

  1. Marine and Offshore Industries:

    • Extensively used in seawater piping, condenser tubes, heat exchangers, marine hardware, and shipbuilding due to its ability to resist saltwater corrosion.
  2. Heat Exchangers and Cooling Systems:

    • Applied in industrial cooling systems, desalination plants, and chemical processing equipment, where efficient heat transfer and corrosion resistance are critical.
  3. Electrical Components:

    • Used in the manufacture of resistors, connectors, and conductive parts where moderate electrical conductivity and environmental resistance are required.
  4. Automotive and Aerospace Industries:

    • Employed in components like fuel lines, brake systems, and aircraft parts that need to perform reliably in corrosive and high-temperature conditions.
  5. Desalination and Water Treatment Plants:

    • Ideal for use in environments with continuous exposure to brine and seawater, ensuring long service life and minimal maintenance.
  6. Decorative and Architectural Applications:

    • Valued for its aesthetic appeal and corrosion resistance, making it suitable for coastal architectural elements like cladding and roofing.

CuNi14 is a versatile alloy with a balanced combination of corrosion resistance, thermal efficiency, and mechanical strength. It is particularly well-suited for use in marine, industrial, and chemical environments, as well as in applications requiring non-magnetic properties. Its reliability and long-term performance under harsh conditions make it an essential material for demanding applications in industries ranging from shipbuilding to electronics.





Type CuNi14NC020
Composition(%) Cu Rest
Mn 0.3
Ni 14.2
Max.continuous operating temperature(℃) 300
Resistivity at 20℃(μ m) 0.20
±5%
Resisitance-temperature coefficient 20-600℃ (×10-5/℃) < 38
Thermovoltage to
copper at 20℃ in (μV/K)
-28
Mean coefficient of linear thermal expansion, in (10-6/K) , at a temperature between 20 ℃ and 400 ℃ 17.5
Thermal conductance
at 20℃ (W/mK)
48
Specific heat capacity at 20℃ in (20℃ J/gK) 0.38
Density at 20 ℃(g/cm3) 8.9
Melting temperature in (℃) 1115
Min.tensile strength in (N/mm2) 310
Elongation(%) 25



Technical data table

Diameter(mm) NC003 CuNi1 NC005 CuNi2 NC007 CuNi4 NC010 CuNi6 NC012 CuNi8 NC015 CuNi10 NC020 CuNi14 NC025 CuNi19 NC030 CuNi23 NC035 CuNi30 NC040 CuNi34 NC050 CuNi44
0.10 3.82 6.36 8.91 12.73 15.28 19.09 25.46 31.83 38.19 44.56 50.93 62.39
0.11 3.16 5.26 7.37 10.52 12.63 15.78 21.04 26.30 31.56 36.82 42.09 51.56
0.12 2.65 4.42 6.19 8.84 10.61 13.26 17.68 22.10 26.52 30.94 35.37 43.33
0.13 2.26 3.76 5.27 7.53 9.04 11.30 15.07 18.83 22.60 26.36 30.14 36.92
0.14 1.95 3.24 4.55 6.49 7.80 9.74 12.99 16.24 19.48 22.73 25.98 31.83
0.15 1.70 2.82 3.96 5.65 6.79 8.48 11.31 14.14 16.97 19.80 22.64 27.73
0.16 1.49 2.48 3.48 4.97 5.97 7.46 9.95 12.43 14.92 17.40 19.89 24.37
0.17 1.32 2.20 3.08 4.40 5.29 6.60 8.81 11.01 13.21 15.41 17.62 21.59
0.18 1.18 1.96 2.75 3.92 4.72 5.89 7.86 9.82 11.78 13.75 15.72 19.26
0.19 1.06 1.76 2.47 3.52 4.23 5.29 7.05 8.81 10.58 12.34 14.11 17.28
0.20 0.95 1.59 2.23 3.18 3.82 4.77 6.36 7.95 9.54 11.14 12.73 15.60
0.21 0.87 1.44 2.02 2.88 3.46 4.33 5.77 7.21 8.66 10.10 11.55 14.15
0.22 0.79 1.31 1.84 2.63 3.16 3.94 5.26 6.57 7.89 9.20 10.52 12.89
0.23 0.72 1.20 1.68 2.40 2.89 3.61 4.81 6.01 7.22 8.42 9.63 11.79
0.24 0.66 1.10 1.55 2.21 2.65 3.31 4.42 5.52 6.63 7.73 8.84 10.83
0.25 0.61 1.01 1.43 2.03 2.44 3.05 4.07 5.09 6.11 7.13 8.15 9.98
0.26 0.57 0.94 1.32 1.88 2.26 2.82 3.77 4.70 5.65 6.59 7.53 9.23
0.27 0.52 0.87 1.22 1.74 2.10 2.61 3.49 4.36 5.23 6.11 6.99 8.56
0.28 0.49 0.81 1.14 1.62 1.95 2.43 3.25 4.06 4.87 5.68 6.50 7.96
0.29 0.45 0.75 1.06 1.51 1.82 2.27 3.03 3.78 4.54 5.29 6.06 7.42
0.30 0.42 0.70 0.99 1.41 1.70 2.12 2.83 3.53 4.24 4.95 5.66 6.93
0.31 0.40 0.66 0.93 1.32 1.59 1.98 2.65 3.31 3.97 4.63 5.30 6.49
0.32 0.37 0.62 0.87 1.24 1.49 1.86 2.49 3.11 3.73 4.35 4.97 6.09
0.33 0.35 0.58 0.82 1.17 1.40 1.75 2.34 2.92 3.51 4.09 4.68 5.73
0.34 0.33 0.55 0.77 1.10 1.32 1.65 2.20 2.75 3.30 3.85 4.41 5.40
0.35 0.31 0.51 0.73 1.03 1.25 1.55 2.08 2.60 3.11 3.63 4.16 5.09
0.36 0.29 0.49 0.69 0.98 1.18 1.47 1.96 2.46 2.94 3.43 3.93 4.81
0.37 0.28 0.46 0.65 0.93 1.12 1.39 1.86 2.33 2.79 3.25 3.72 4.56
0.38 0.26 0.44 0.62 0.88 1.06 1.32 1.76 2.20 2.64 3.08 3.53 4.32
0.40 0.24 0.39 0.56 0.79 0.95 1.19 1.59 1.99 2.38 2.78 3.18 3.90
0.41 0.23 0.37 0.53 0.76 0.91 1.13 1.51 1.89 2.27 2.65 3.03 3.71
0.42 0.22 0.36 0.51 0.72 0.87 1.08 1.44 1.80 2.16 2.52 2.89 3.54
0.43 0.21 0.34 0.48 0.69 0.83 1.03 1.38 1.72 2.06 2.41 2.75 3.37
0.44 0.20 0.32 0.46 0.66 0.79 0.98 1.31 1.64 1.97 2.30 2.63 3.22
0.45 0.19 0.31 0.44 0.63 0.75 0.94 1.26 1.57 1.88 2.20 2.52 3.08
0.46 0.18 0.30 0.42 0.60 0.72 0.90 1.20 1.50 1.80 2.10 2.41 2.95
0.47 0.17 0.28 0.40 0.58 0.69 0.86 1.15 1.44 1.72 2.01 2.31 2.82
0.48 0.17 0.27 0.39 0.55 0.66 0.82 1.10 1.38 1.65 1.93 2.21 2.71
0.49 0.16 0.26 0.37 0.53 0.64 0.79 1.06 1.33 1.59 1.85 2.12 2.60
0.50 0.15 0.25 0.36 0.51 0.61 0.76 1.01 1.27 1.52 1.78 2.04 2.50
0.51 0.15 0.24 0.34 0.49 0.59 0.73 0.98 1.22 1.46 1.71 1.96 2.40
0.52 0.14 0.23 0.33 0.47 0.57 0.70 0.94 1.18 1.41 1.65 1.88 2.31
0.53 0.14 0.22 0.32 0.45 0.54 0.67 0.91 1.13 1.35 1.59 1.81 2.22
0.54 0.13 0.22 0.31 0.44 0.52 0.65 0.87 1.09 1.30 1.53 1.75 2.14
0.55 0.13 0.21 0.29 0.42 0.51 0.63 0.84 1.05 1.26 1.47 1.68 2.06
0.56 0.12 0.20 0.28 0.41 0.49 0.60 0.81 1.02 1.21 1.42 1.62 1.99
0.57 0.12 0.19 0.27 0.39 0.47 0.58 0.78 0.98 1.17 1.37 1.57 1.92
0.58 0.11 0.19 0.27 0.38 0.45 0.56 0.76 0.95 1.13 1.32 1.51 1.85
0.59 0.11 0.18 0.26 0.37 0.44 0.54 0.73 0.91 1.09 1.28 1.46 1.79
0.60 0.11 0.18 0.25 0.35 0.42 0.53 0.71 0.88 1.06 1.24 1.41 1.73
  • Tolerance of ohm/m: ±5%
  • Round wire: range from 0.04mm (0.0016″) to 12mm (0.4724″)
  • Ribbon: range from 0.05mm (0.002″) to 6mm (0.2362″), Max ratio width : thickness = 10:1
