ODM Nichrome Alloy Insulated Heating Wire Flame Retardant

Products

Heating Cable

Mr. Changfeng Ye

toretto.ye@senphus.com

-0510-86650038

Contact Now

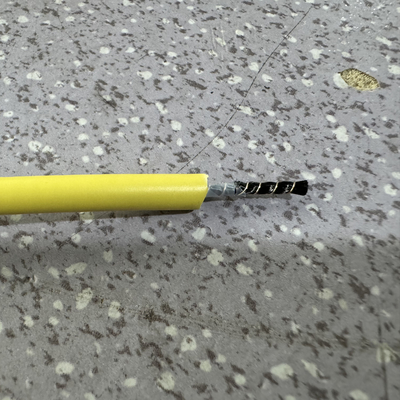

ODM Nichrome Alloy Insulated Heating Wire Flame Retardant

MOQ:	500M
Price:	From X USD/M
Delivery Period:	3 days
Payment Method:	T/T, D/P

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Senphus

Model Number

Customizable

Alloy Material:

Nickel-Chromium

Inner Material:

High Strength Aramid（Optional）

Paint Cladding Material:

Polyurethane（Optional）

Outer Material:

FEP（Optional）

Alloy Wire Diameter:

＜0.15mm（Optional）

Highlight:

Nichrome Insulated Heating Wire

ODM Insulated Heating Wire

ODM insulated nichrome heating wire

Product Description

Customizable copper-nickel alloy heat wire, diameter less than 0.15mm, optional outer sheath of various materials

ODM Nichrome Alloy Insulated Heating Wire Flame Retardant 0

Bulletproof Silk (Optional)

Material	Temperature resistance	Thermal decomposition	Applied for grade	Advantages
High strength aramid	In a 100 to 250 ℃ long-term use will not have obvious change and impairment	Thermal decomposition temperature more than 450 degrees	Applied for more than 110N	1. Good mechanical 2. Heat resistant and flame retardant 3. The stable chemical properties 4. Radiation resistanc 5. Durability

Alloy Material

Texture	Ni-Cr (Can not be enameled)
Resistance	According to the requests
Wire diameter	0.05~0.12mm
Characteristic	1. High strength 2. High temperature resistance 3. Anti-corrosion 4. Strong Plasticity
Operating principle	Heating filament dogan twisted

Paint Cladding(Optional)

Texture	Polyurethane	Polyetherimide
Temperature class	-50~150℃	-160~180℃
Characteristic	1. Performance wide adjustable range well-adapted 2. Adhesive performance is good 3. Good elasticity, good resilien, can be used for dynamic joint 4. Good flexibility at low temperatures 5. Good weather resistance,service life up to 15~20 years 6. Good oil resistance 7. Biological aging resistance 8. Moderate cost	1. Excellent Mechanical Properties 2. Good electrical insulatingperformance 3. Excellent radiation resistance 4. Excellent resistanceto high and low temperature performance 5. Excellent wear resistance 6. Excellent microwave through performance 7. Strong plastcity

Outer Sheath (Optional)

Texture	PA12	TPEE	PVC	FEP
Plastic outer diameter	0.8mm~1.0mm
Temperature class	-40~140C	-70~200℃	-30~125℃	-100~220℃
Dielectric strength	39Kv/mm	36Kv/mm	36Kv/mm	42Ky/mm
Dielectric constant	1.9×10^7 HZ	1.4×10^7 HZ	1.4×10^7 HZ	2.8×10 HZ
Breaking strength	19~25MPa	18~24MPa	18~24MPa	15~22MPa

Application scope of Senphus enameled alloy heating wire:

More and more people, especially youngsters, are needing warmth for their joints, particularly during the cold winters and rainy days. This trend is Senfphus' heating alloy enamelled wire, when used in home heating appliances like electric blankets, can significantly improve heat conversion efficiency. Its unique alloy material boasts a high resistivity, enabling rapid heating upon electrification. The enamelled wire structure effectively prevents short circuits and electric leakage, ensuring safe use. Moreover, the heating alloy enamelled wire is highly resistant to high temperatures and corrosion, boasting a long service life, meeting the long-term usage requirements of home heating appliances.

Competitive Advantages of Senphus

1. Mature Alloy Wire Smelting Technology

2. Top-notch manufacturing process.

3. Strict work process

4. The Independent Enamel Coated Heating Wire Divisionindex.php

5. Large-scale R&D and production capabilities.

6. Extremely fast shipping capability.

7. Strong brand and reputation
