Phosphor Bronze Wire Mesh Ideal Wire Mesh For Many Industries

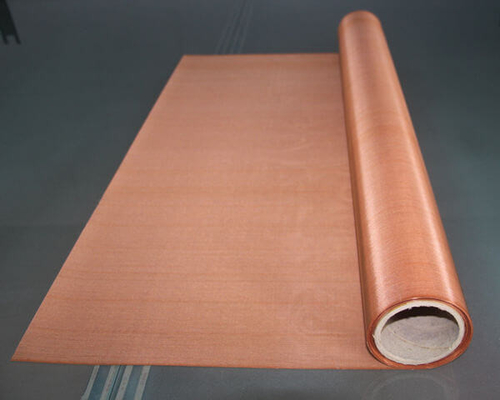

Phosphor Bronze Wire Mesh

Finding materials with resistance to corrosion brought about by chemicals is a dilemma for many industries that work with chemical compounds. Wire meshes made of Phosphor Bronze are stronger and can withstand exposure to chemicals making it the ideal wire mesh for many industries. Phosphor Bronze is composed of tin, copper and phosphorous, three chemical compounds that when mixed together make the wire mesh malleable and solderable thus making it easier to manufacture fine structure meshes.

Technical data:

1 Technical requirements for weaved nickel mesh

    1.1 Technical requirements for nickel wire

         a. Chemical composition Nickel content >99.5%.

         b. Diameter tolerance of nickel wire ±0.005mm

         c. Nickel wire tensile strength >400Mpa, elongation >25%

    1.2 Mesh size and mesh uniformity of nickel mesh conform to GB/T 17492

    1.3 The allowable number of major defects of nickel mesh (holes, cracks, half weft, thin and dense channels, skip wire, loose weft/warp wire, warp loose channels) zero defect.

    1.4 The maximum deviation of the overall size of the mesh is ±0.5%

    1.5 The flatness of mesh is less than 5mm/2.5m

Dimensions and tolerance

Mechanical properties

Key Features of Phosphor Bronze Wire Mesh

• Excellent Electrical Conductivity

Ideal for electrical and electronic applications due to its stable conductivity.

• Corrosion Resistance

Superior resistance to corrosion in marine and industrial atmospheres, making it suitable for demanding environments.

• Good Mechanical Strength

Combines flexibility with toughness, ensuring durability under tension and bending.

• Fine Weaving Capability

Can be woven into very fine meshes for precise filtration or screening.

• Wear and Abrasion Resistance

Suitable for applications where high friction or mechanical wear is a concern.

• Non-Sparking and Non-Magnetic

Safe to use in sensitive electronic or explosive environments.

• Thermal Stability

Maintains performance in high-temperature applications.

• Versatile Sizes and Specifications

Available in a variety of mesh sizes, wire diameters, and roll widths to suit different industrial needs.

Applications of Phosphor Bronze Wire Mesh

Phosphor bronze wire mesh—composed primarily of copper, tin, and a small amount of phosphorus—offers excellent corrosion resistance, strength, and electrical conductivity. Its unique combination of properties makes it an ideal material for a wide range of applications across various industries:

• Filtration and Sieving

Widely used in chemical processing, food and beverage industries, and pharmaceuticals to filter liquids, gases, and powders thanks to its corrosion resistance and fine mesh structure.

• Electromagnetic Interference (EMI) Shielding

Serves as an effective EMI/RFI shielding material in electronics and telecommunications, preventing electromagnetic interference in sensitive equipment.

• Aerospace and Marine Engineering

Ideal for use in harsh, corrosive environments such as aircraft, ships, and offshore platforms due to its excellent resistance to seawater and atmospheric conditions.

• Electrical and Electronic Components

Utilized in battery manufacturing, connector screens, and circuit board shielding because of its good electrical conductivity.

• Architectural and Decorative

Employed in interior design and construction for decorative mesh panels, lamp shades, and ventilation screens, offering a distinctive aesthetic along with functional durability.

• Acoustic Panels and Speaker Grilles

Provides a durable yet acoustically transparent mesh for high-fidelity audio equipment and soundproofing panels.
